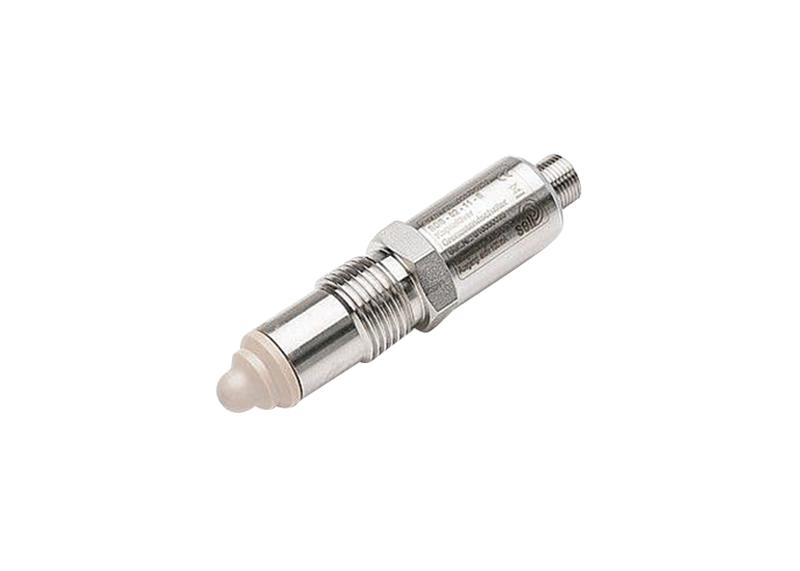

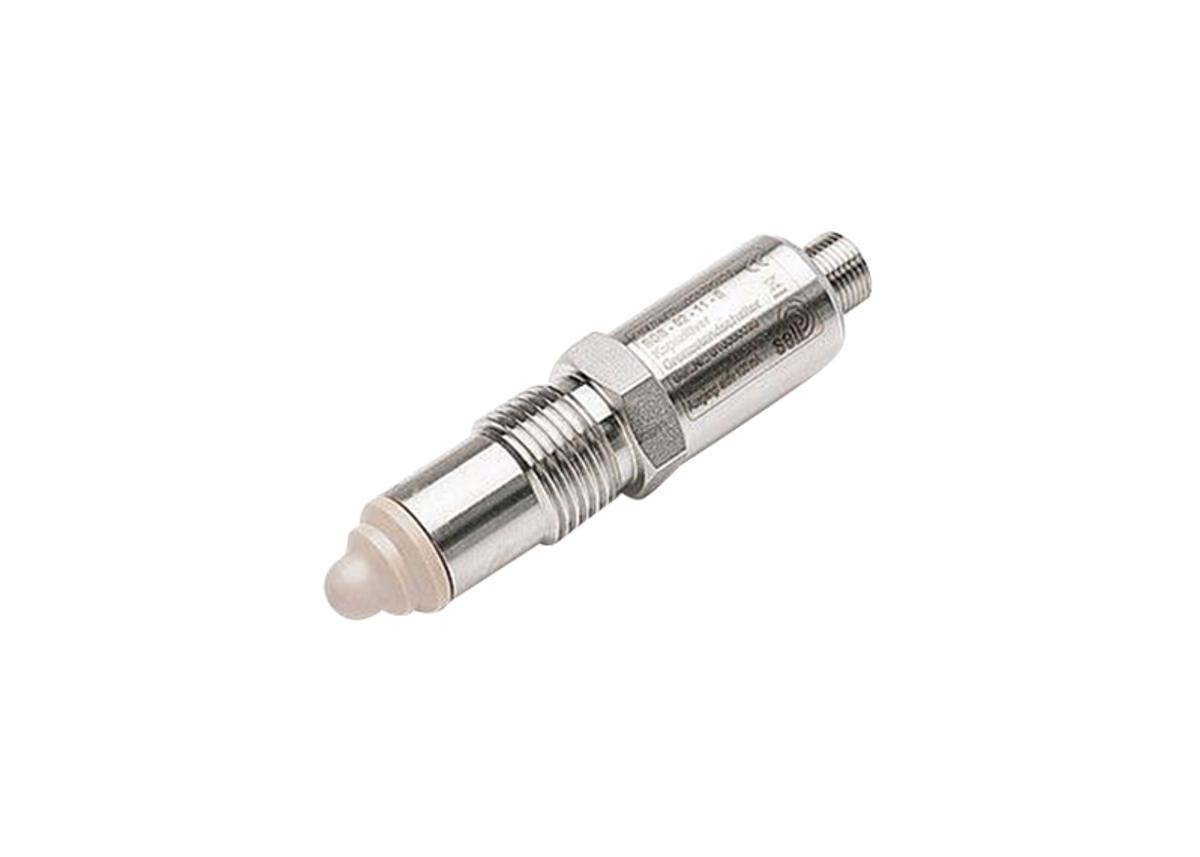

- level-limit switch for aqueous and oily substances
- turn-on and shut-off thresholds selectable via software (not necessary to have 2 devices)
- standard: aqueous substances
- weld-in sleeve system and modular process connections
- aseptic measuring point
- medium-affected components are made of Peek
- particularly high measurement dynamics
- partially cast
- EHEDG certified, FDA conform
Features
- stainless steel terminal head material Nr. 1.4305
- connection: M12-connector
- thread G1/2” elastomer-free seal system
- Probe tip made of PEEK (HPC-Tip No.2)
- CIP- / SIP cleaning 0…150ºC (30 min)
ambient temperature 40°C - supply voltage 20…32 VDC
- output signal PNP (standard), NPN or Push-Pull reversible / break contact, turnkey reversible
- start-up delay < 0.3s
- response time <0.2s
- ambient temperature -10…+70ºC
- permissible substance temperature permanent 0…+100ºC
- storage temperature -20…+70ºC
- operating pressure max. 10 bar (higher pressures upon request)
- protection class up to IP68 /69K
- tightening torque 5…20 Nm
- permitted electrical load: 100mA
Technical specifications
