- weld-in sleeve system Tuchenhagen
- aseptic measuring point possible
- electrodes can be shortened independently
- medium-affected components are made of stainless steel
- material Nr. 1.4404 and Peek
- coating: HALAR® 3404DA
- FDA, EHEDG conform
Features
- coated electrodes 10mm Ø (Coating for SIP applications (Sterilizing-In-Place) only conditionally suitable.)
- stainless steel terminal head material Nr. 1.4305
- connection: M12-connector
- optional with integrated level module
- optional ports with terminal head:
- screw connection
- M12 plug-in
- elastomer-free seal system with union cap
- ambient temperature (head) -10…+60ºC
- process temperature 0…100ºC
- max. process temperature 0…140ºC (30 min)
- permanent temperature (head) 0…+70ºC
- protection class IP68
- operating pressure max. 10 bar
- tightening torque for seal system 10-20 Nm
Technical specifications
Get in touch

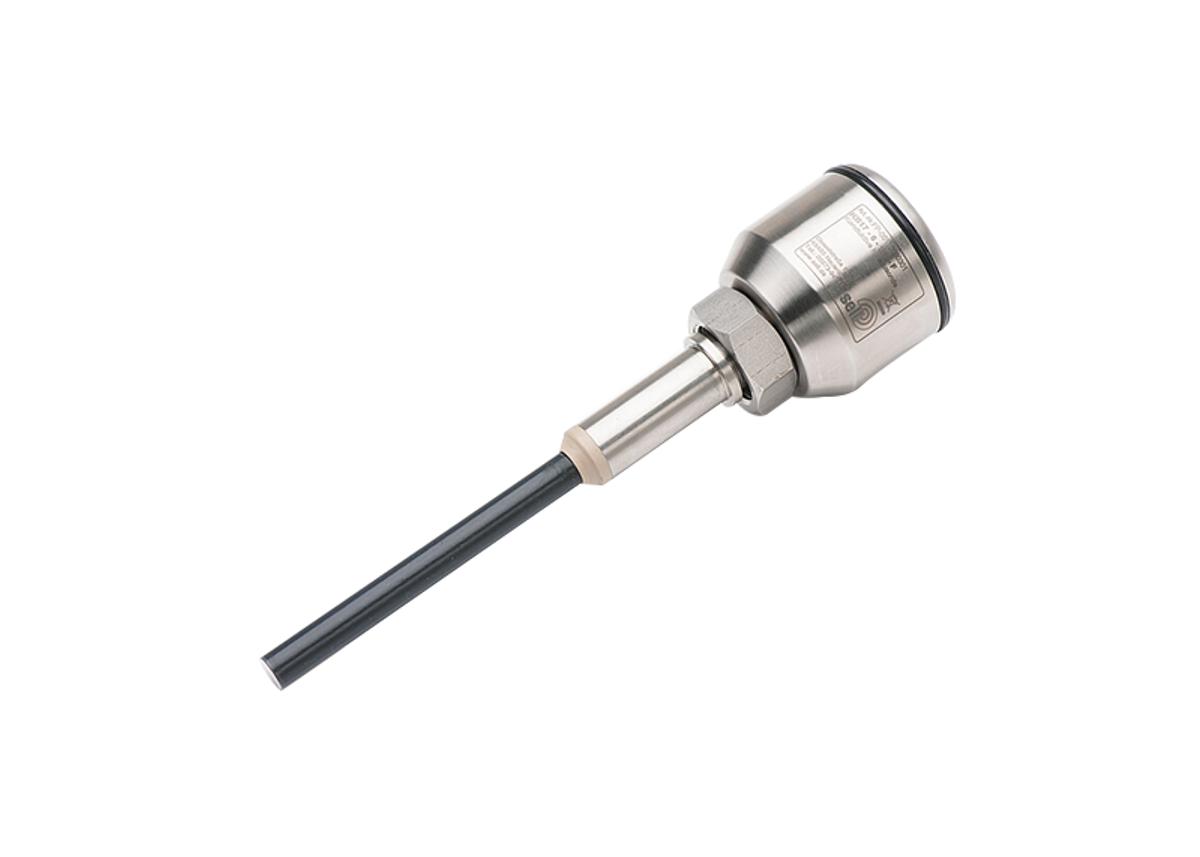

Interested in Conductive Type Level Detector KS-17?
