- weld-in sleeve system and modular process connections and pressure screw connection aseptic measuring point possible
- electrodes can be shortened independently
- medium-affected components are made of stainless steel
- material Nr. 1.4404 / HALAR® 3404DA-coating
- FDA, EHEDG conform
Features
- coated or uncoated electrodes (Coating for SIP applications (Sterilizing-In-Place) only conditionally suitable.)
- optional stainless steel terminal head material Nr. 1.4305
- connection: M12-connector
- optional with level module
- optional ports with terminal head:
- M12 plug-in
- fixed cable
- optional ports without terminal head:
- screw connection
- M12 plug-in
- thread G1/2” elastomer-free seal system
- protection class IP69K
- operating pressure max. 10 bar (higher pressures upon request)
- tightening torque for seal system 5-20 Nm
- CIP- / SIP cleaning 140ºC (30 min)
- permissible substance temperature permanent 0…100ºC
- ambient temperature -10…60ºC
- probe length 2 m
Technical specifications
Get in touch

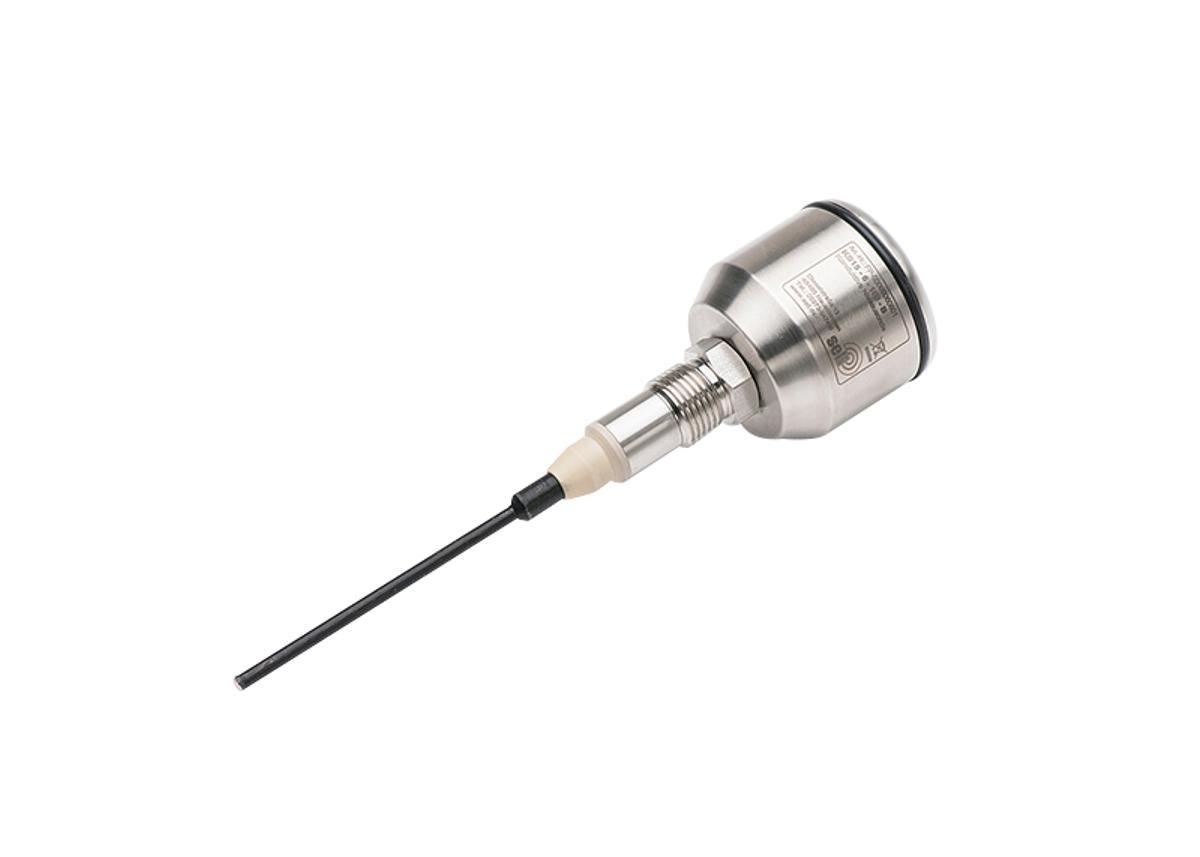

Interested in Conductive Type Level Detector SKS-15?
