- high precision
- high temperature range
- nominal pressure range up to 40 bar
- gauge pressure
- configurable remotely via PC
- remote zeroing (Teach)
- complete flush mounted membrane
- medium-affected components made of stainless steel No. 1.4435
- FDA, EHEDG conform
Features
- accuracy in accordance with IEC 60770: 0.2% FSO
- long-term stability
- protected against polarity reversal and short circuit
- temperature range applications:
measuring substance (permanent): -20 ºC up to 110ºC
measuring substance maximum (1/2h): up to 140ºC - response time 40 – 300 ms (dependant on measurement reading variations; large leap = fast, small leap = slow
- protection class IP67 according to EN 60529
- M12 plug connector made of stainless steel
- Alternatively with stainless steel terminal head and pressure screw
- adjustable damping
- zero adjustment via remote Teach function
Technical Specifications
Get in touch

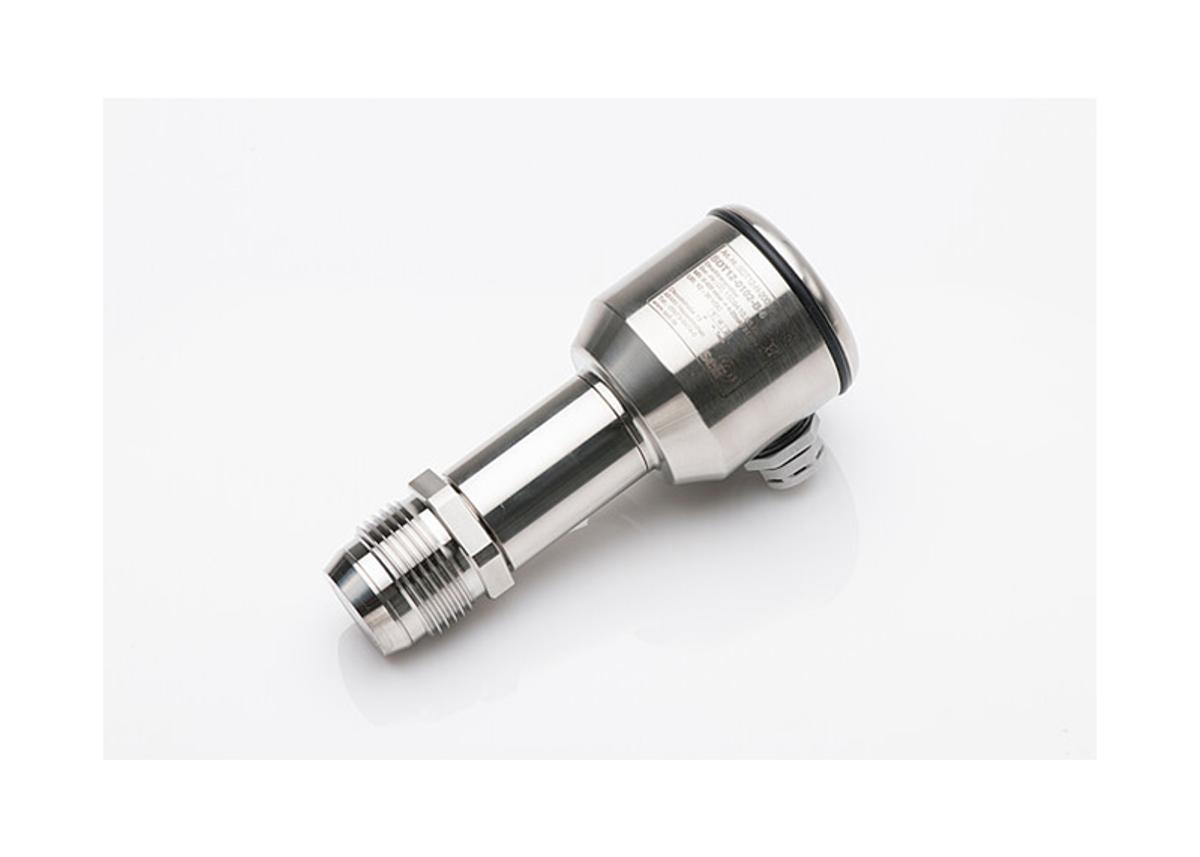

Interested in Flush Mounted Level Transmitter SDT-12?
