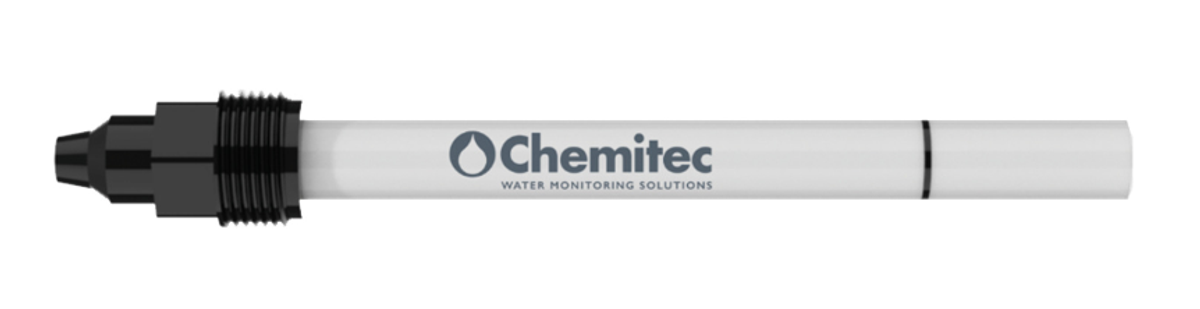

Conductivity Cell S411 D12

Product Overview

The Chemitec S411 D12 is a conductivity measurement cell engineered for standard industrial and process water monitoring configurations. Equipped with precision platinum electrodes and a durable body assembly available in glass or plastic configurations, this sensor delivers stable analysis across a versatile measuring range from 0 µS up to 100 mS or 200 mS depending on final system calibration. It comes standard with an integrated Pt100 temperature sensor embedded directly into the cell body for automatic real-time thermocompensation.

With its slim 12 mm diameter probe profile, the cell provides exceptional installation flexibility and can be deployed inside immersion probe holders, dedicated flow cells, or mounted via direct insertion into process lines using its standard PG13.5 threaded connection. The S411 D12 operates reliably under process pressures spanning 0 to 3 bar and across temperatures from -20°C to +60°C, making it an excellent fit for monitoring raw water, drinking water, ultra-pure water, and standard industrial process treatments.
