Conductivity Transmitter Series 30

Product Overview

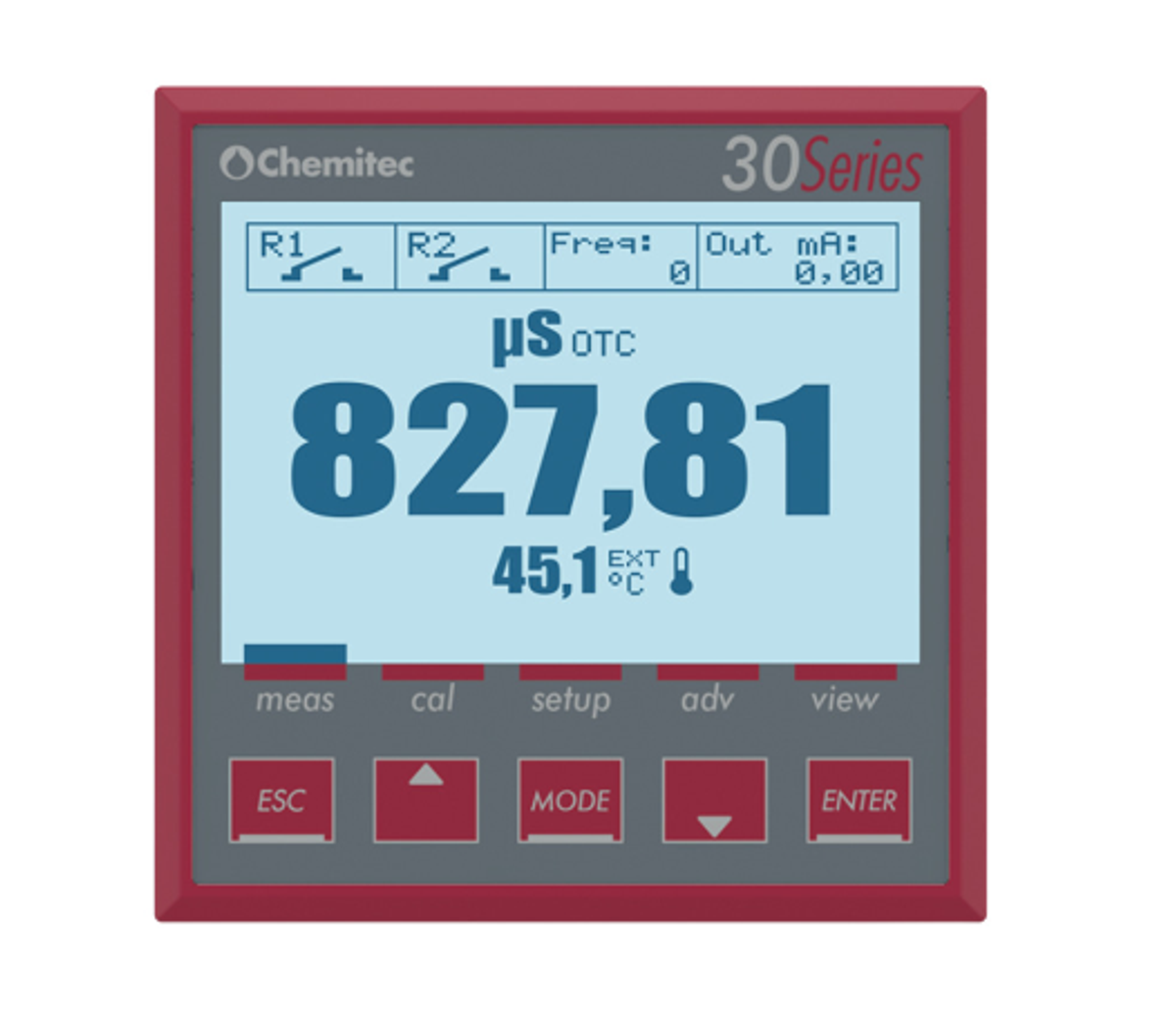

The Chemitec 30 Series is a robust single parameter controller engineered for accurate water quality monitoring and process automation. Designed to interface with an individual analytical sensor, it provides precise measurement and real-time tracking for pH/ORP, conductivity, or custom process variables via a dedicated 4-20mA analog input. The instrument features a clear 128x128 pixel graphic display that simultaneously presents numeric measurement values, structural bar graphs, temperature readings, and intuitive operational icons for alarms and output states.

Equipped with a simple 5-button keypad configuration supporting multi-function command structures, the controller allows for straightforward calibration and adjustments in the field. Output capabilities include a galvanically isolated, programmable 0/4-20mA analog channel, a bidirectional solid-state frequency output, and two mechanical set-point relays with programmable cycle and delay times. Built for industrial versatility, the 30 Series is available in either a space-saving panel-mount form factor or a rugged, surface-ready IP65 wall-mount ABS enclosure, making it a reliable choice for commercial water treatment facilities and process lines.
