- aseptic measuring point
- closed off to process area
- optional with head transmitter 4…20 mA
- FDA, EHEDG conform
- probe made of raw material No. 1.4301

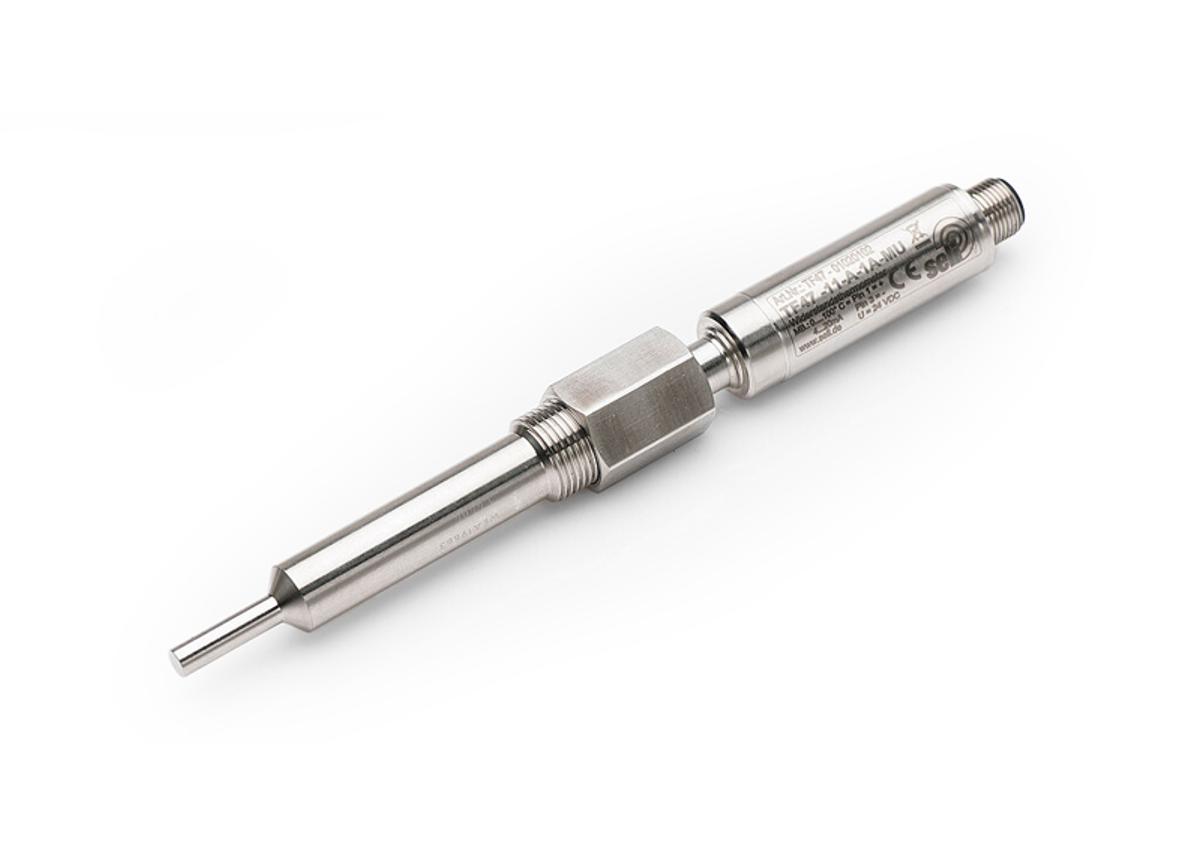

Features
- 1 xPt100 class A
- process connection: immersion probe with 3/8” union cap
- standard range of application -10ºC to +150ºC
- maximum permissible temperature for electronics up to 70ºC
- connection with M12-connector
- measuring tube: DA = 3.00 mm, EL 85.0 mm
- threaded connection G 3/8” SW 19
- material: G 3/8” screw and barstock: 1.4404/1.4301/1.4305
- housing: 1.4301/1.4305
- accuracy of measurement MU: max ±0.2v. final value
- supply voltage: 10…35V (DC)
- maximum process pressure 170 bar at 20ºC 130 bar at150ºC
- outlet: 4…20mA, two-wire
- protection class IP 69K
- immersion pocket
- material 1.4404
- temperature range of application -100ºC to +250ºC
Technical Specifications
