Category
Temperature Transmitters
Head-mount, DIN-rail and field temperature transmitters for industrial processes and buildings.
A temperature transmitter converts an RTD or thermocouple signal into a 4 to 20 mA loop a PLC or SCADA system can read over a long cable run. This page covers Pixsys head-mount transmitters, a Shinko DIN-rail transmitter, and Produal field transmitters for immersion, duct, cable and outdoor sensors. For a version with a display, see the digital temperature switch.
12 Products · Temperature Transmitters
Cable Temperature Transmitter TEKY4 LL
Din Rail Mounted Digital Temperature Transmitter
Duct Temperature Transmitter TEK LL
Head-Mount Temperature Transmitter
Immersion Temperature Transmitter TEAT LL
Outdoor Temperature Transmitter TEU LL
PT1000 Temperature Sensor with Integrated Transmitter, M12 Connector
Compact PT1000 probe with built-in 4..20 mA or 0..10 V output on an M12 plug
Room Temperature Transmitter RTX
Temperature Sensor

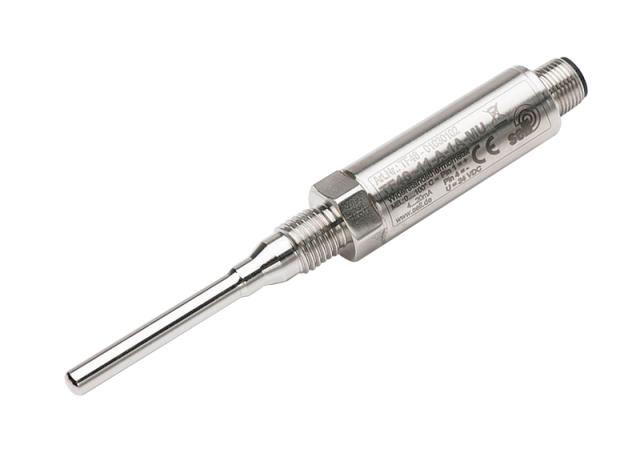

Temperature Sensor With Weld-in Sleeve System
Temperature Transmitter With Display, Programmable By NFC/RFID Technology
Touchscreen Room Transmitter RTX-D
Selection guide
Temperature Transmitters Guide
How a temperature transmitter works
The transmitter reads the resistance from an RTD or the voltage from a thermocouple and outputs a linear 4 to 20 mA signal proportional to temperature. A head-mount transmitter sits inside the sensor head in the field, so the long cable run carries a stable 4 to 20 mA signal instead of a millivolt-level sensor signal. A DIN-rail transmitter sits in the panel, away from process heat and vibration, and takes the raw sensor cable instead.
How to choose a temperature transmitter
- Location: choose head-mount (Pixsys) when the sensor is far from the panel, or DIN-rail (Shinko) when the sensor cable run is short and the panel is close.
- Input type: the Pixsys head-mount transmitter fits a DIN B sensor head and takes Pt100, Pt1000, Ni100 or thermocouple input on a 2-wire 4 to 20 mA loop.
- Set-up: the head-mount transmitter is programmed by NFC, without needing power, which is useful for pre-configuring spares. An isolated version is available where galvanic isolation matters.
- Multiple inputs: the Shinko DIN-rail transmitter is a compact 22.5 mm wide multi-input unit with high sampling speed and an optional Modbus output.
- Ready-made field sensors: Produal supplies matched transmitter versions of its immersion, duct, cable and outdoor sensors, so you don't have to pair a separate transmitter yourself.
- Hygienic process: the Seli weld-in sleeve system suits aseptic applications where the sensor has to be welded into the pipe.
Need the temperature shown locally as well, with switching outputs? See the digital temperature switch. For the probes themselves, see RTD temperature probes.
FAQ
Common questions
What does a temperature transmitter do that a sensor alone can't?
A bare RTD or thermocouple gives a resistance or millivolt signal that degrades over long cable runs and needs a compatible input card. A transmitter converts that signal into a standard 4 to 20 mA loop close to the sensor, so it travels reliably to a PLC or SCADA system over any distance.
Should I choose a head-mount or a DIN-rail temperature transmitter?
Choose head-mount when the sensor is far from the control panel: it converts the signal right at the sensor head, so the long cable carries a stable 4 to 20 mA loop. Choose DIN-rail when the panel is close by, keeping the electronics away from process heat and vibration.
Can a temperature transmitter take both RTD and thermocouple inputs?
The Pixsys head-mount transmitter accepts Pt100, Pt1000, Ni100 or thermocouple input in the same unit, fitted inside a DIN B sensor head. You choose the input type when you configure it by NFC. The Shinko DIN-rail transmitter is also multi-input, with an optional Modbus output for panel integration.
Do you supply temperature transmitters for aseptic or hygienic process lines?
Yes. The Seli temperature sensor with a weld-in sleeve system is built for aseptic applications, where the sensor assembly is welded directly into the pipe or vessel rather than fitted through a threaded pocket. Tell us the process connection and we'll confirm the matching sleeve.
How is a Pixsys head-mount transmitter configured?
It's programmed by NFC, tapping a phone or programmer against the transmitter without needing external power. That makes it easy to set the range and input type on the bench before installation, or to reconfigure a spare quickly. An isolated version is available where the loop needs galvanic isolation.
