Categories Temperature, RTD Temperature Probes
TEAT immersion sensor is used to sense the liquid temperature in pipes in HVAC systems. TEAT needs to be installed into an immersion pocket. Installation of the device is easy because the screw cover and the terminal blocks are tilted to 45°.
Brand : HK Instruments

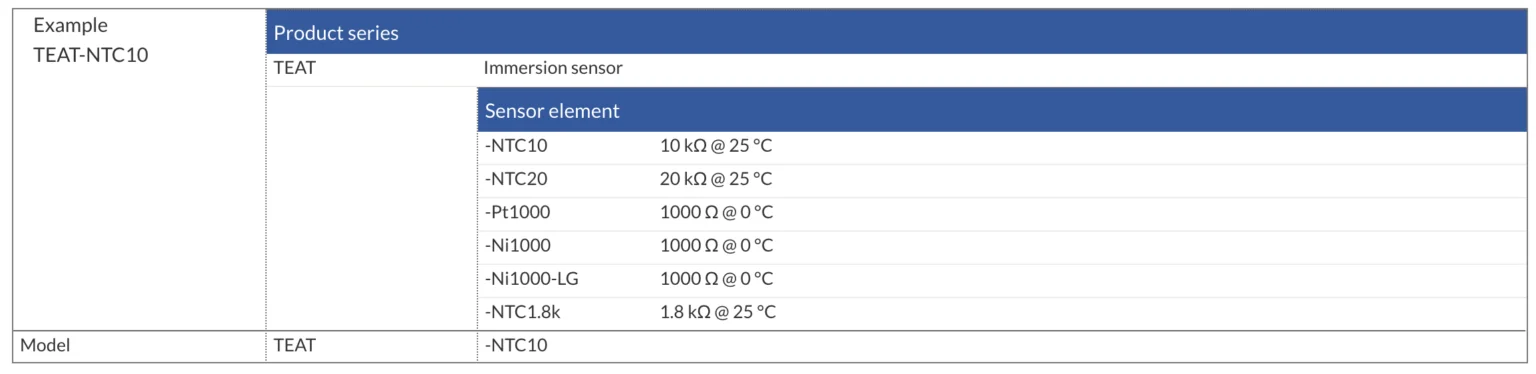

| Accuracy | NTC10k ± 0.2 °C @ 25 °C NTC20k ± 0.2 °C @ 25 °C Pt1000 ± 0.3 °C @ 0 °C Ni1000 ± 0.4 °C @ 0 °C Ni1000-LG ± 0.5 °C @ 0 °C NTC1.8k ± 0.3 °C @ 25 °C |
| Measuring range | -50 … +120 °C |

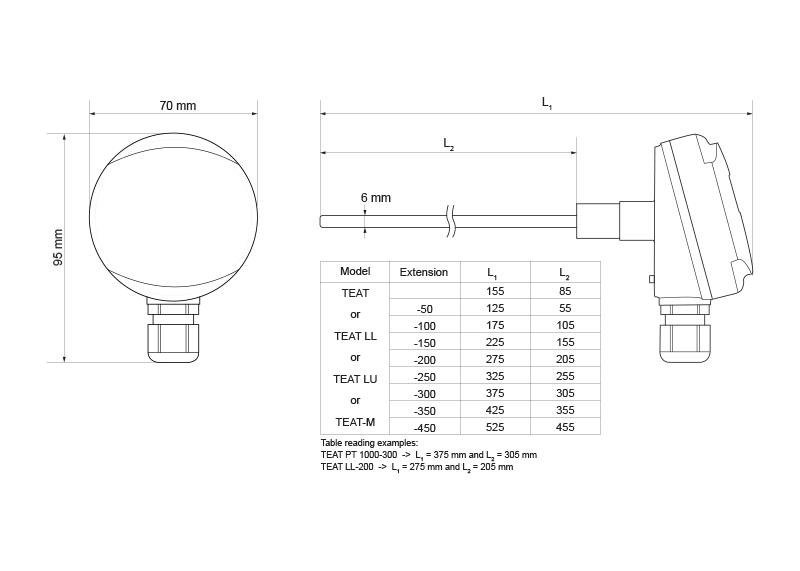

| Probe length | 85 mm |
| Probe outer diameter | 6 mm |
| Materials | Measuring probe: stainless steel |
| Protection class | IP54, cable or probe downwards |
| Length | 80 mm (Other lengths available upon request) |
| Outer diameter | 8 mm |
| Mounting | R½” threads |
| Material | AT: stainless steel (AISI 300) ATH: acid-proof steel (AISI 316L) ATM: brass (MS362) |
| Pressure rating | PN16 |
