TEPK surface sensor is used to sense the liquid temperature in pipes in HVAC systems. TEPK is easy to install with an adjustable tie and does not need immersion pocket to sense pipe temperature.
Brand : HK Instruments

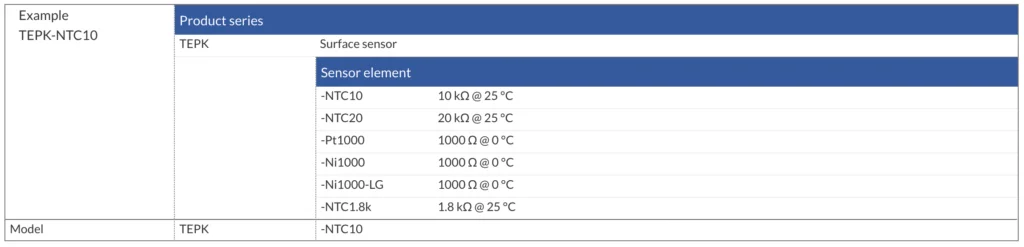

| Accuracy | NTC10k ± 0.2 °C @ 25 °C NTC20k ± 0.2 °C @ 25 °C Pt1000 ± 0.3 °C @ 0 °C Ni1000 ± 0.4 °C @ 0 °C Ni1000-LG ± 0.5 °C @ 0 °C NTC1.8k ± 0.3 °C @ 25 °C |
| Measuring range | -20 … +80 °C |
| Materials | Probe: Zinc casting Cable: PVC (LIYY 2 x 0.14) |

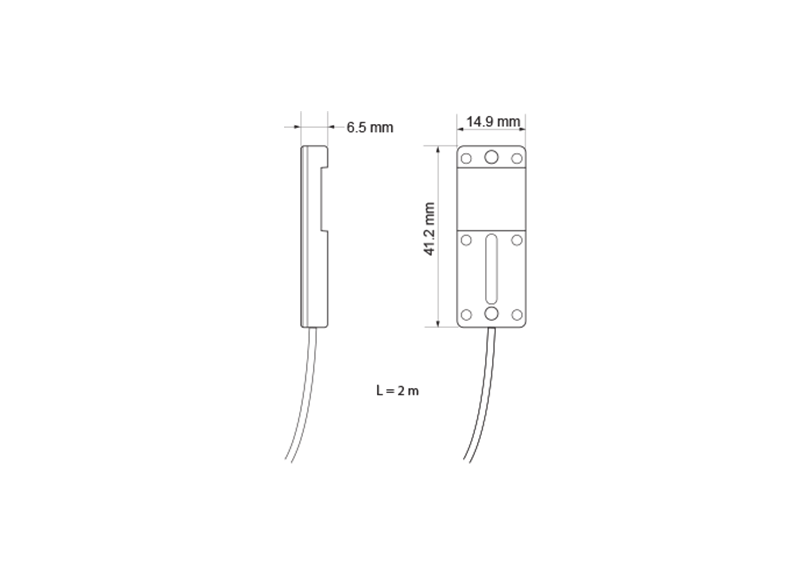

| Probe dimensions | 41.2 x 14.9 x 6.5 mm |
| Cable length | 2.0 m (Custom lengths available upon request) |
| Protection class | IP54 |
