TEU LL temperature transmitter is designed to measure outdoor temperature in HVAC applications. Pt1000 sensor element resistance information is converted to a 4…20 mA signal. The ML-SER commissioning tool can be used to make one point field calibration and to change the temperature output to controller output.
Brand : Produal
| Attribute | Value |
|---|---|
| Power supply | 15…35 Vdc |
| Temperature measurement range | 0…50 °C, 0…100 °C, -50…50 °C, -50…150 °C |
| Temperature measurement accuracy | ±0.5 °C |
| Sensor | Pt1000 EN 60751/B |
| Current output | 4…20 mA (temperature or controller) |
| IP protection class | IP54 |
| IP protection class note | Cable downwards |
| Cable gland | M16 |
| Ambient temperature | -30…60 °C |

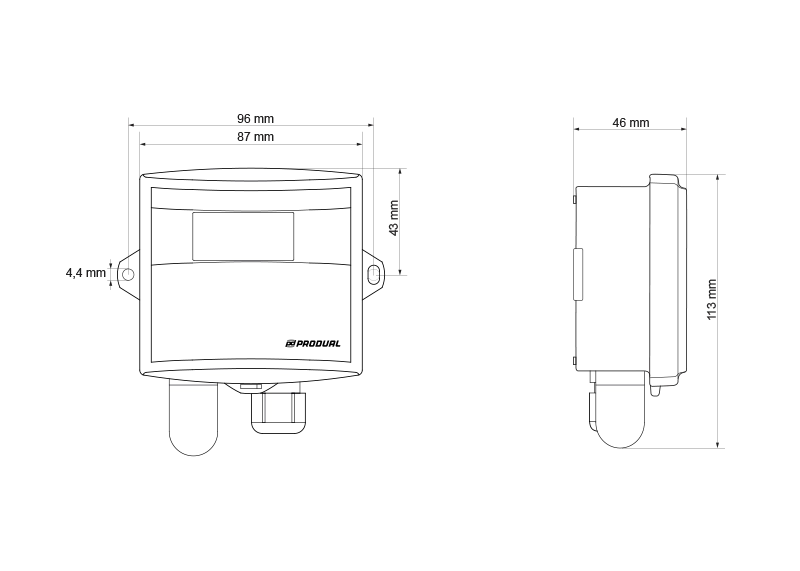

| Product dimensions | 115 x 115 x 45 mm |
| Mounting | With screws on wall, external lugs |
| Materials | PBT, PC, PA |
