General Specifications:
| Specification |
Value |
| Temperature Range |
-20°C to 100°C (LT models) |
| 0°C to 250°C (MT models) |
| 0°C to 500°C (HT models) |
| Optics |
Choice of optics for small or large targets at short or long distances – see Field of View Diagrams
|
| Output (Measured Temperature) |
Two-wire 4-20 mA (-0 models) |
| 0-50 mV (-1 models) |
| Type J Thermocouple (-3 models) |
| Type K Thermocouple (-4 models) |
| Output (Sensor Body Temperature) |
4-20 mA on power loop (models with output options 1 to 4 only) |
| Accuracy |
±1% of reading or ±1ºC, whichever is greater |
| Repeatability |
±0.5% of reading or ±0.5ºC, whichever is greater |
| Emissivity |
Fixed at 0.95 |
| Response Time, t90 |
240 ms (90% response) |
| Spectral Range |
8 to 14 μm |
| Supply Voltage |
24 V DC (28 V DC max.) |
| Min. Sensor Voltage |
6 V DC |
| Max. Loop Impedance |
900 Ω (4-20 mA output) |
| Output Impedance |
56 Ω (voltage/thermocouple output) |
Mechanical Specifications:
| Specification |
Value |
| Construction |
Stainless Steel |
| Dimensions |
18 mm diameter x 103 mm long |
| Thread Mounting |
M16 x 1 mm pitch |
| Cable Length |
1m (longer lengths available to order) |
| Weight with Cable |
95 g |
Environmental Specifications:
| Specification |
Value |
| Environmental Rating |
IP65 |
| Ambient Temperature Range |
0ºC to 70ºC |
| Relative Humidity |
95% max. non-condensing |
Electromagnetic Compatibility Standards:
| Specification |
Value |
| Standards |
EN61326-1, EN61326-2-3 |
| (Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements – Industrial) |

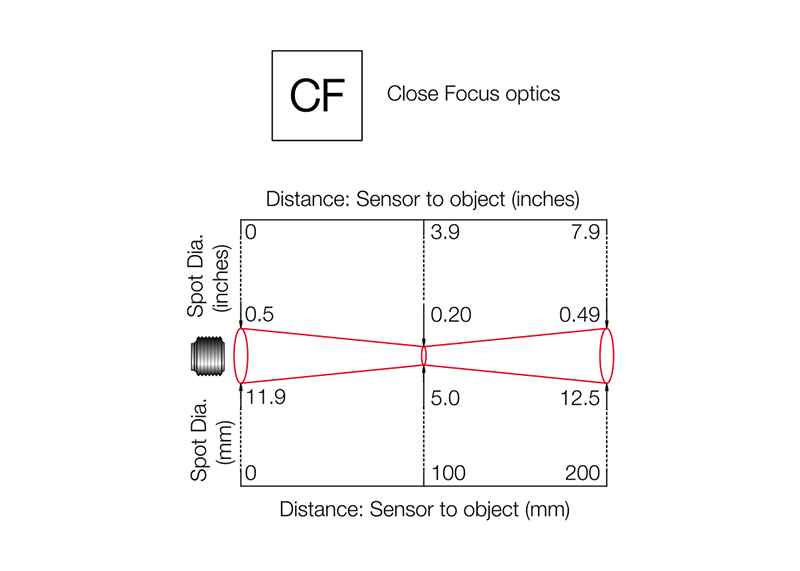

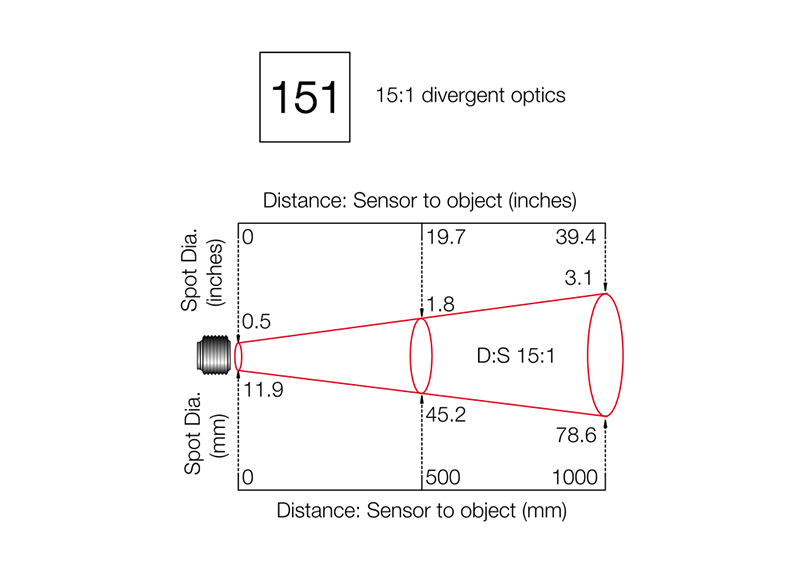

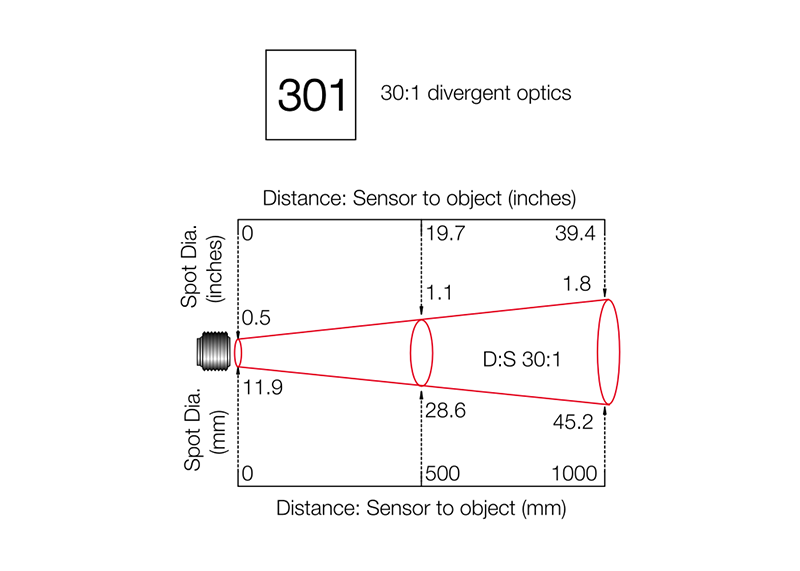

Field of View Diagrams:
Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the PyroCouple detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
