PyroEpsilon – Fixed Infrared Temperature Sensor With Adjustable Emissivity

Categories Temperature, Infrared Temperature Sensors / Pyrometers

PyroEpsilon is a fixed infrared temperature sensor with adjustable emissivity setting. It can control temperature range of -20°C to 500°C. You can modify the emissivity setting via 4 – 20 mA input to 4 – 20 mA output to measure temperature. You will get quickest response with the higher stability. It has a stainless steel 316 cover and IP65 protection level. It is ideal to use with the PID controller model number PPT245. The series of PyroEpsilon is of optimum quality, low price and non-contact temperature sensors.

Brand : Calex

Get Quote

Description
Attachment

Features

Temperature ranges from -20°C to 500°C
2-wire 4-20 mA output for measured temperature
Emissivity adjustment via separate 4-20 mA input
4-20 mA input signal may be supplied by the optional PyroTune emissivity adjuster (pictured), DRR245 indicating controller, or any other source such as a PLC output
Stainless steel housing, sealed to IP65
Choice of optics to suit all target sizes
Not designed or approved for fever detection

Technical Description

Field of View	-20°C to 100°C	0°C to 250°C	0°C to 500°C
2:1	PE21LT	PE21MT	* (Contact Calex)
15:1	PE151LT	PE151MT	PE151HT
30:1	PE301LT	PE301MT	PE301HT
Ø 5 mm @ 100 mm	PECFLT	PECFMT	PECFHT

PyroEpsilon Sensor:

Attribute	Value
Temperature Ranges	-20°C to 500°C
Output	4-20 mA (two-wire, on power loop)
Emissivity Setting	Adjustable from 0.2 to 1.0 via 4-20 mA input
Response Time, t90	240 ms (90% response)
Spectral Range	8 to 14 μm
Supply Voltage	24 V DC (28 V DC max.)
Min. Sensor Voltage	6 V DC
Max. Loop Impedance	900 Ω (4-20 mA output)
Input Impedance	50 Ω

PyroTune Emissivity Adjuster:

Attribute	Value
Output	4-20 mA
Supply Voltage	24 V DC (13 V to 28 V DC)
Display Format	3.5 digit LCD
Display Units	Emissivity (0.2 to 1.0) or current (4 to 20 mA)
Adjustment	Push-buttons (raise/lower/set)
Construction	Polycarbonate with gasket, transparent lid (PC), and quick-release screws
Mounting	Surface
Dimensions	65(h) x 50(w) x 35(d) mm
Weight	72 g
Environmental Rating	IP65
Ambient Temperature Range	0°C to 70°C
Relative Humidity	95% max. non-condensing

Mechanical Specifications:

Attribute	Value
Construction	Stainless Steel
Dimensions	Diameter 18 mm x length 103 mm
Thread Mounting	M16 x 1 mm pitch
Cable Length	1 m (longer lengths available to order)
Weight with Cable	95 g

Environmental Specifications:

Attribute	Value
Environmental Rating	IP65
Ambient Temperature Range	0°C to 70°C
Relative Humidity	95% max. non-condensing

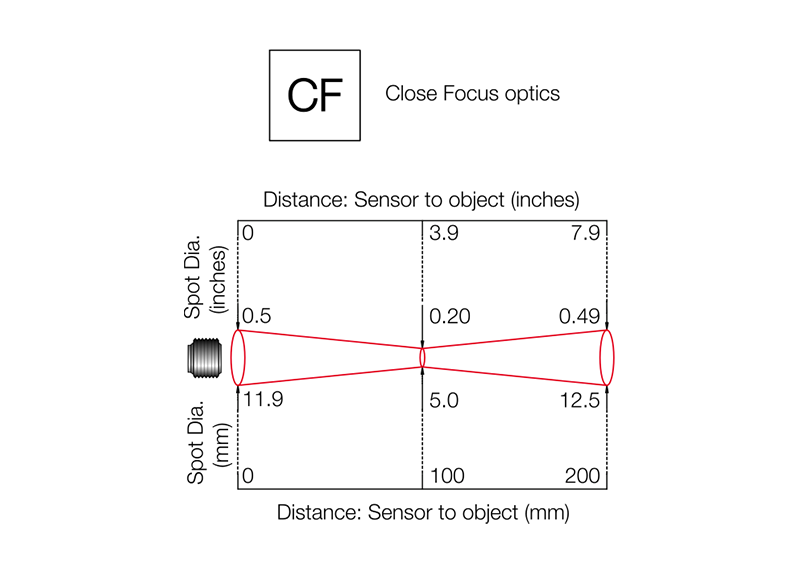

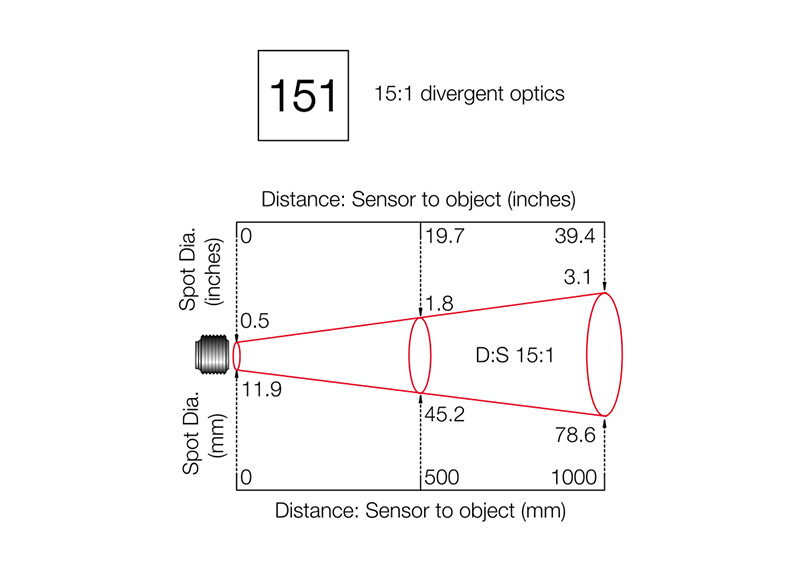

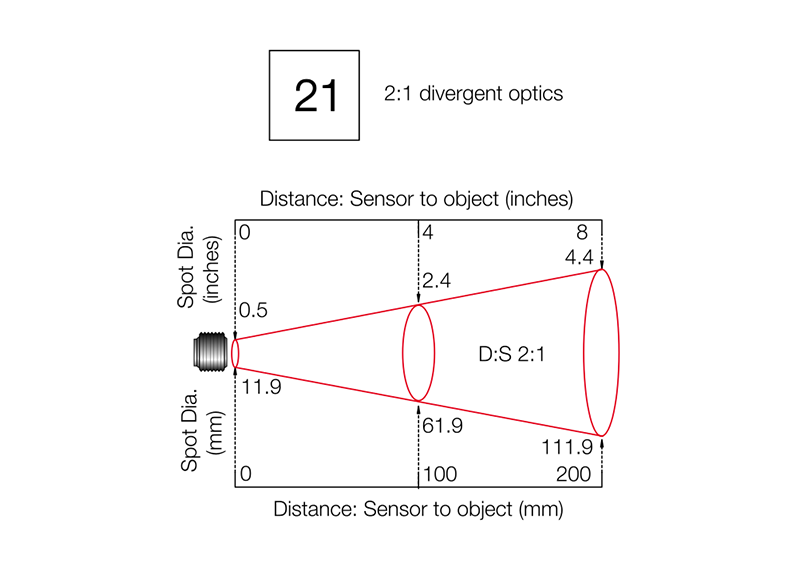

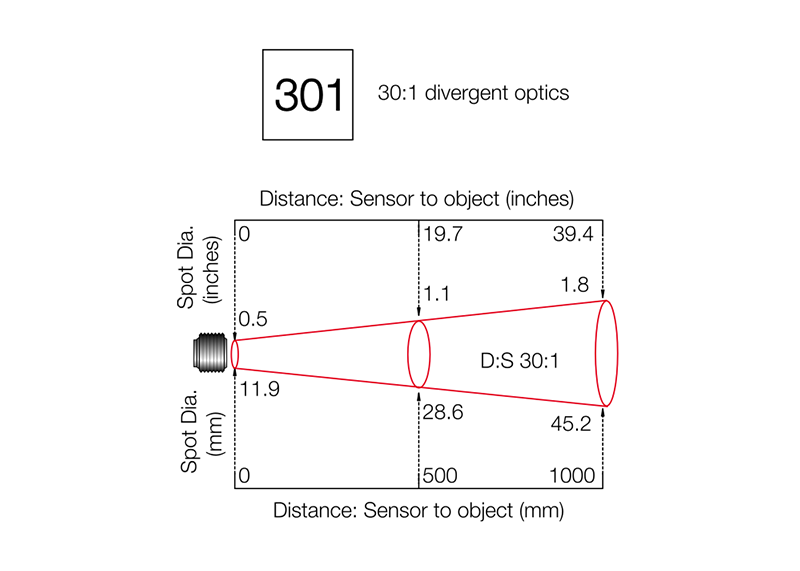

Field of View Diagrams:

Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the PyroEpsilon detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere. 2:1 optics are not available on sensors with temperature range 0°C to 500°C as standard. Please contact Calex for more information.
