Temperature range (models with voltage output only)
Linear voltage output type and scale (models with voltage output only)
Alarm output threshold and hysteresis
Emissivity setting
Reflected temperature
Temperature Units
°C / °F
Signal Processing
Averaging Period (0.125 to 60 seconds)
Peak / Valley Hold
Hold Period (0.125 to 120 seconds)
Temperature Reading
Hold NFC device against sensor for continuous in-app temperature updates (Android)
Tap temperature and hold phone against sensor to take a single temperature reading (iOS)
Mechanical Specifications:
Attribute
Value
Construction
Black anodized aluminum and ABS
Cable Length
1 meter standard (longer lengths available to order)
Weight with 1 Meter Cable
– 65 g (models with voltage output)
– 100 g (models with thermocouple output)
Environmental Specifications:
Attribute
Value
Environmental Rating
IP65
Ambient Temperature Range
0°C to 80°C
Relative Humidity
95% max. non-condensing

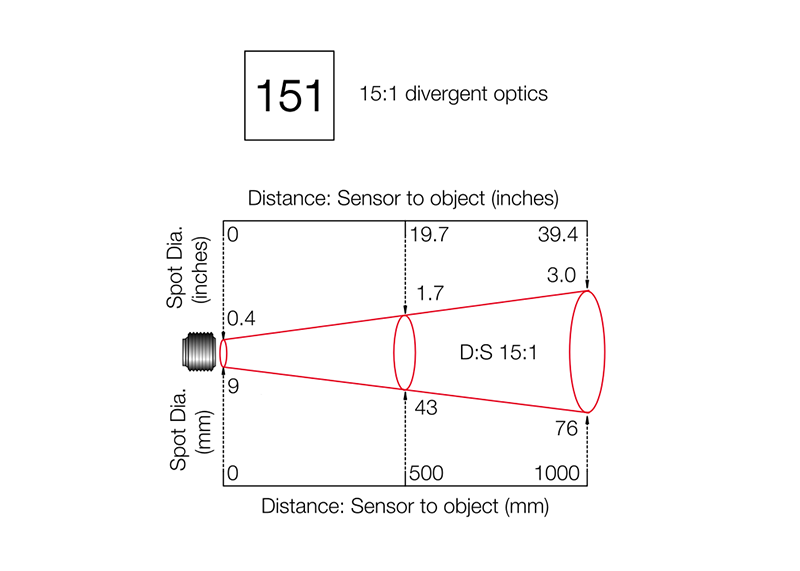

Field of View Diagrams:
The diagram shows the measured spot size for 90% of the detected energy. Sensors can measure longer distances than
the diagram shows, and the accuracy is not affected by the measurement distance in clean air. This is because the
PyroNFC detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
