Categories Temperature, Infrared Temperature Sensors / Pyrometers
Brand : Calex
| Attribute | Value |
|---|---|
| Field of View | 12:1 |
| Temperature Range | -32°C to 535°C (-25°F to 999°F) |
| Accuracy | – ±3°C (±5°F) from -32°C to -20°C (-25°F to -4°F) – ±2°C (±3°F) from -20°C to 100°C (-4°F to 212°F) – ±2% above 100°C (212°F) |
| Spectral Range | 5 to 14 μm |
| Repeatability | ±1°C (±2°F) |
| Resolution | 0.1°C (0.1°F) |
| Response Time | 500 ms |
| Operating Temperature | 0°C to 50°C (32°F to 122°F), 10% to 90% RH |
| Power Off | Automatic after approximately 7 seconds |
| Display | LCD with backlighting |
| Battery Type | 9 V, PP3 (not supplied) |
| Dimensions | 156 x 100 x 32 mm |
| Weight | 195 g |
| Emissivity Setting | Selectable 0.95, 0.7, 0.3 |
| Type K Thermocouple Input | NO (see ST642) |
| eSmart Emissivity Correction | NO (see ST642) |
| Tripod Mounting Thread | NO (see ST642) |
| Colour Changing Display for Alarm | NO (see ST642) |
| Audible Alarm | YES |
| °C/°F Switchable | YES |
| Display Backlight | YES |
| Laser Sight, Switchable | YES |
| Max, Min, Avg, ΔT | YES |
| Carrying Case Included | YES |
| 10 Point Memory | YES |

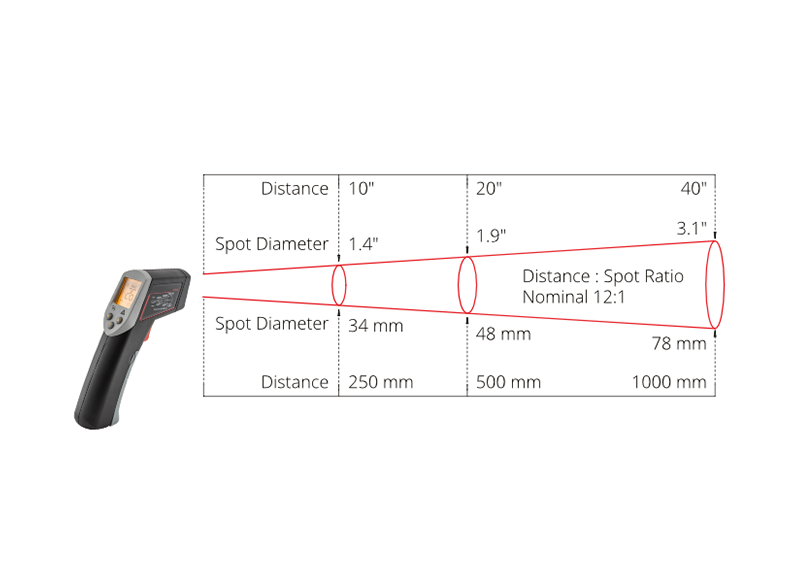

Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. The thermometer may be used at longer distances than the above diagram shows, with a proportionally larger measured spot.
