PM180 Touch Screen Interface Features
- 6-channel temperature display with configuration, alarms and data logging
- Analogue and alarm relay outputs via optional modules
System Features
- Low-cost standalone 6-channel temperature measurement system
- Build larger systems using the PM180’s separate Modbus Master and Slave interfaces
- Connect PyroMiniBus sensors directly to third-party RS-485 Modbus systems
General Specifications
| Attribute |
Value |
| Compatibility |
PyroMiniBus (all models) |
| PyroBus (all models) |
| PyroMini (-BB and -BRT models) |
| Display |
2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit |
| Supply Voltage |
10 to 30 V DC |
| Maximum Current Draw |
100 mA |
| Ambient Temperature Range |
0°C to 60°C |
| Relative Humidity |
Maximum 95%, non-condensing |
| Configurable Parameters (global) |
Temperature units |
| Date and time |
| Data logging |
| Graph channels |
| Alarm logging |
| Configurable Parameters (per sensor) |
Signal processing |
| Emissivity setting |
| Reflected energy compensation |
| Alarms |
| Modbus address |
| Alarm Configuration |
12 alarms (2 per sensor) with adjustable level, individually configurable as HI or LO |
| Temperature Units |
°C or °F selectable |
| Temperature Resolution |
0.1° |
| Signal Processing |
Average |
| Peak hold |
| Valley hold |
| Minimum |
| Maximum |
| Display Sample Period |
120 ms per sensor (720 ms in total for 6 sensors) |
Data Logging Specifications:
| Attribute |
Value |
| Logging Interval |
1 to 86,400 seconds (1 day) |
| MicroSD Card |
Max. capacity: 32 GB (not included) |
| Internal Clock Battery |
1 x BR 1225 3V (not included) |
| Variables Logged |
Target temperature |
| Sensing head temperature |
| Alarm events |
| File Format |
.csv (can be imported to Excel) |
| Configurable Parameters |
Sample period |
| Number of samples |
| Scheduled start date and time |
Configuration
| Attribute |
Value |
| Configuration Method |
Via PM180 touch screen, or directly via RS-485 Modbus |
| Configurable Parameters |
Emissivity Setting |
| Averaging |
| Peak/Valley Hold Processing |
| Reflected Energy Compensation |
Mechanical Specifications:
| Attribute |
Value |
| Construction |
Stainless Steel |
| Dimensions |
18 mm diameter x 45 mm long (excluding cable gland) |
| Thread Mounting |
M16 x 1 mm pitch |
| Cable Length |
1m (longer lengths available to order) |
| Weight with Cable |
85 g |
Environmental Specifications:
| Attribute |
Value |
| Environmental Rating |
IP65 |
| Ambient Temperature Range |
PyroMiniBus sensor: 0°C to 120°C including cable |
| PMBHUB junction box: 0°C to 80°C |
| Relative Humidity |
95% max. non-condensing |

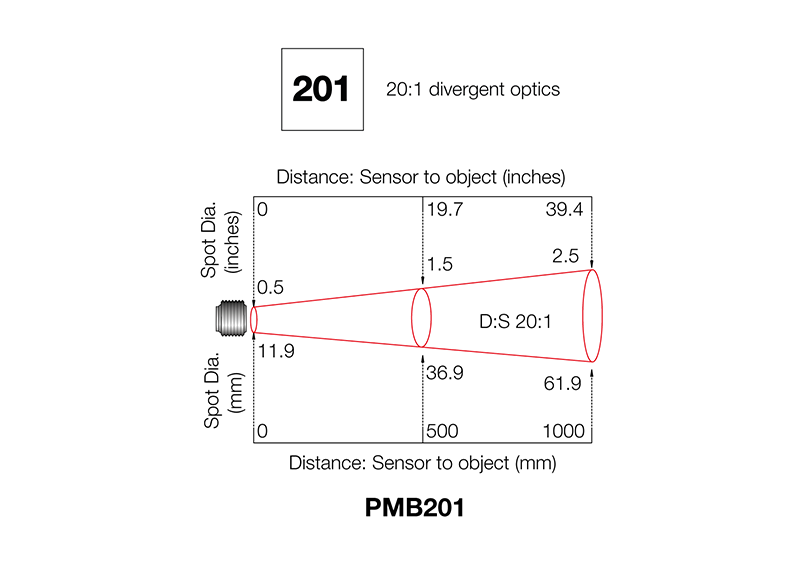

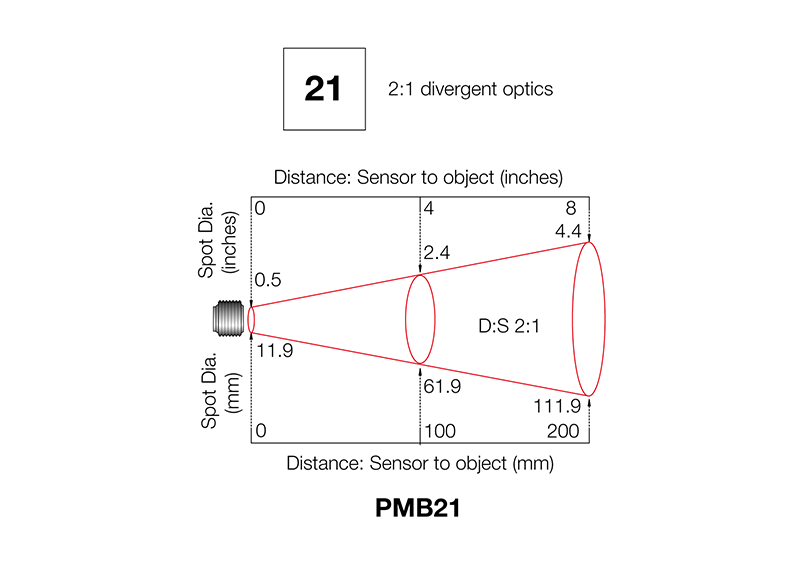

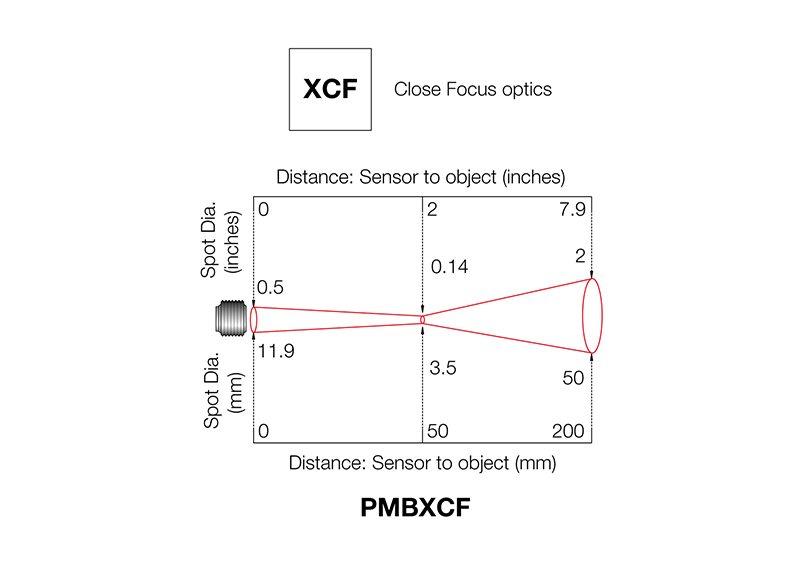

Field of View Diagrams:
Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend
the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer
distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the
PyroMiniBus detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
