General Specifications
| Attribute |
Value |
| Temperature Range |
-20°C to 1000°C |
| Interface |
Raw CAN |
| Accuracy |
±1% of reading or ±1°C, whichever is greater |
| Repeatability |
±0.5% of reading or ±0.5°C, whichever is greater |
| Emissivity Setting |
Adjustable via CAN, 0.2 to 1.0 |
| Response Time, t90 |
200 ms (90% response) |
| Spectral Range |
8 to 14 μm |
| Supply Voltage |
12 to 24 V DC |
| Supply Current |
50 mA max. |
CAN Protocol Specifications:
| Attribute |
Value |
| Baud Rate |
250 kbps |
| Data Format |
8 bytes total: |
| Bytes 1-4: Object temperature as floating point |
| Bytes 5-8: Ambient temperature as floating point |
| Transmit Interval |
200 ms |
| CAN ID Range |
ID can be set between 0 and 255 as a 4-byte unsigned integer |
| Emissivity |
Adjustable from 0.2 to 1.0 as a 4-byte floating point |
Mechanical Specifications:
| Attribute |
Value |
| Construction |
Stainless Steel |
| Dimensions |
18 mm diameter x 103 mm long |
| Thread Mounting |
M16 x 1 mm pitch |
| Cable Length |
1m (longer lengths available to order) |
| Weight with Cable |
95 g |
Environmental Specifications:
| Attribute |
Value |
| Environmental Rating |
IP65 |
| Ambient Temperature Range |
0°C to 90°C |
| Relative Humidity |
95% max. non-condensing |

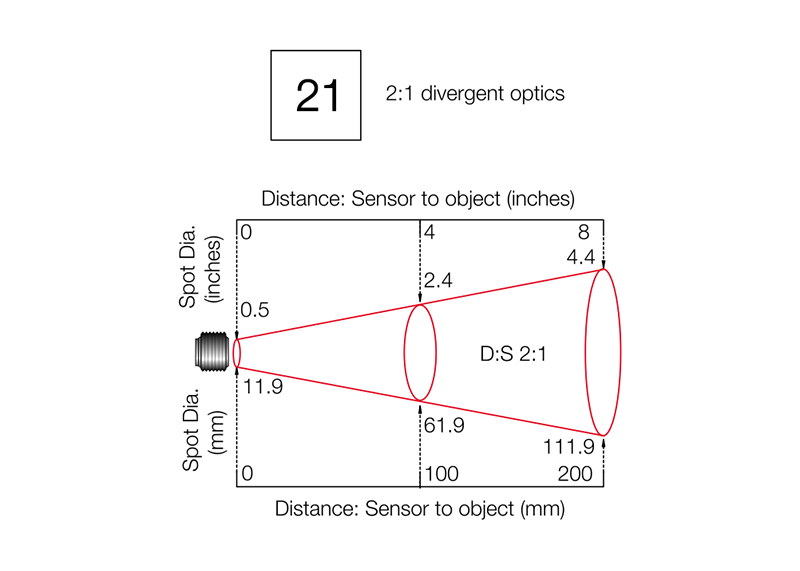

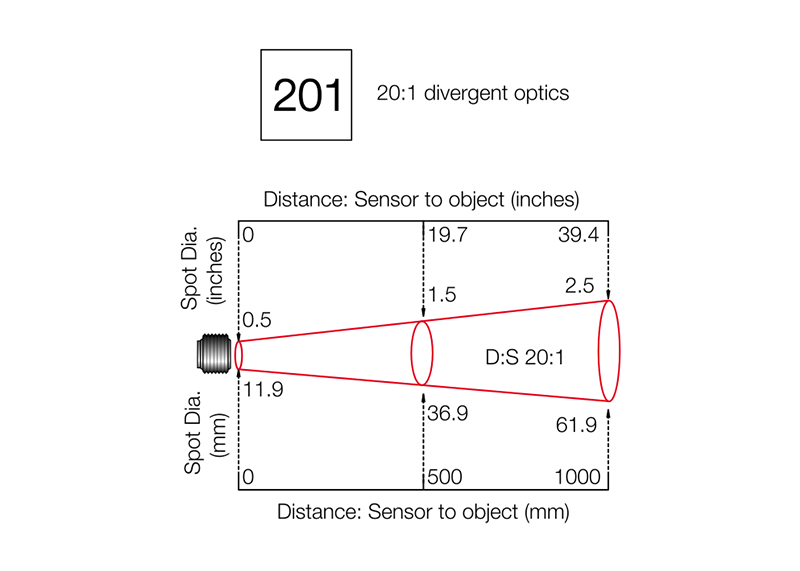

Field of View Diagrams:
Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend
the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer
distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the
PyroCAN detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
