Pressure Switch 901 Prescal® Adjustable

adjustable from -700 mbar to 12 bar

Categories Pressure, Pressure Switches

Engineered for demanding industrial environments, Beck pressure switches safeguard equipment and processes by reliably monitoring overpressure and vacuum across a wide range of media. Our versatile Series 901 covers everything from fine low‑pressure and vacuum control to high‑pressure cut‑out up to 12 bar; choose factory‑set versions for repeatable switching or the Prescal variants with a scaled adjustment knob for quick, tool‑free setpoint tuning—even for aggressive liquids and gases when configured with the right materials.

Brand : Beck GmbH

Get Quote

Description
Attachment

Application

Wastewater technology
liquid level measurement
pump control
medical technology
and many more

Technical Data

Pressure ranges

standard pressure (sub code 6x)
5…3000mbar
overpressure (sub code 9x)
1.0…12.0bar
vacuum (sub code 7x)
-5…-700mbar
high accuracy applications (sub code 8x)
5…50mbar

Tolerance band on set and reset pressure
standard precision +/- 10%

Max operating pressure
please refer to datasheet

Temperature Range

Ambient temperature from –20°C to 85°C
Temperature of media up to 85°C or 130°C depending on material of pressure connection and diaphragm.

Diaphragm Material

Depending on media NBR, Silicone, FKM (Viton®), EPDM. For 901.8x Silicone, others upon request.

Pressure Connection

Material: PA, PVDF, PPS, Brass, Stainless steel
Hose nipple: 5,0mm, 6,5mm, 10,0mm
Thread: M10x1, G1/8, G1/4, G1/2

Electrical Rating

Specification of the maximum values for ohmic load.

AgNi-contact

6(1,5) A/250 VAC
2 A/24 VDC

Gilded contact

100 mA/24 VAC
30 mA/24 VDC

On request AgNi contacts up to 10 A / 250 VAC can also be supplied.

Electrical Connection

AMP flat plug 6.3 x 0.8 mm according to DIN 46244

Protection Class

IP44 / IP54 / IP65 depending on the used protection cap

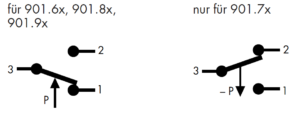

Arrangement Of Contacts
