Air Velocity Transmitter

      Categories Flow, Air Flow Switch

      The AVT is an electronic air velocity and temperature transmitter for air and non-combustible gases with optional relay output.

      AVT air velocity transmitters are engineered for building automaton in the HVAC/R industry. They are electronic air velocity and temperature transmitters for air. They measure air velocity and temperature in ventilation ducts, with field selectable options for measurement range and output settings in a single device.

      AVT has a duct mount probe and an adjustable duct flange suitable for round or rectangular ducts.

      Brand : HK Instruments

      Get Quote
      • Description
      • Attachment

        AVT series devices include

      • Separate readings and outputs for air velocity and temperature
      • Proportional output options: voltage (0…10 V) and current (4…20 mA)
      • PID controller for air velocity (-D models)
      • Three field selectable measurement ranges for air velocity, selectable with jumpers (models without display)
      • Freely selectable measurement range for air velocity via menu (-D models)
      • Field selectable measurement units (-D models):
        • air velocity: m/s, ft/min
        • temperature: Celsius, Fahrenheit

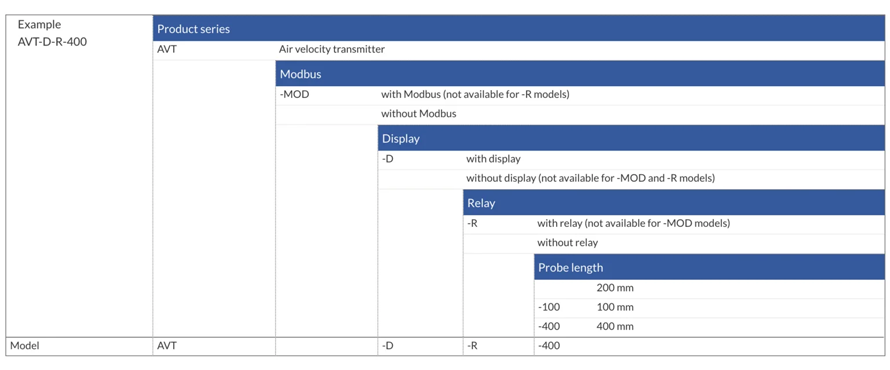

        AVT series device options offer

      • Display (-D models)
      • Field adjustable relay (-R models)
      • Modbus (-MOD models)

      Optional relay output : Will work as Air flow Switch

      Optional relay output : Will work as Air flow SwitchTechnical Details :

      Air velocity measurement Measurement range
      0…2 m/s, 0…10 m/s, 0…20 m/s, freely selectable
      Accuracy (typ at 25 °C):
      v ≥ 0.15 m/s and ≤ 2 m/s (0.2 m/s + 2 % from reading)
      v > 2 m/s and ≤ 10 m/s (0.5 m/s + 3 % from reading)
      v > 10 m/s (1.0 m/s + 3 % from reading)
      Temperature measurement Measurement range:
      -25…50 °C (probe)
      Accuracy (25 °C):
      ±0.5 °C (air velocity > 0.5 m/s)
      Measuring units Air velocity: m/s or ft/min
      Temperature: °C or °F
      Supply voltage 24 VDC ±10 % / 24 VAC ±10 %
      Current consumption max. 80 mA + 40 mA with mA output + 10 mA with relay option (DC supply voltage)
      Output signal 1 (T out [C]) 0…10 Vdc, load > 1 kΩ
      4…20 mA, load 20…400 Ω
      Output signal 2 (v out [m/s]) 0…10 Vdc, load > 1 kΩ
      4…20 mA, load 20…400 Ω
      Optional relay output 250 Vac, 6 A res., adjustable operating direction, switching point and hysteresis
      Operating temperature -25…50 °C (probe)
      0…50 °C (transmitter housing)
      Probe Stainless steel, adjustable immersion length, mounting flange included
      Protection standard IP54, cable downwards
