Hazardous Area Classification:
| Specification |
Value |
| ATEX Classification |
Ex II 1GD |
| IECEx Classification (Gas) |
Ex ia IIC T4 Ga |
| IECEx Classification (Dust) |
Ex ia IIIC T135°C IP65 Da |
| Ambient Temperature Rating |
-20°C ≤ Ta ≤ 70°C |
| Maximum DC Input Voltage |
Ui = 28 V |
| Maximum Input Current |
Ii = 93 mA |
| Maximum Input Power |
Pi = 650 mW |
| Maximum Internal Capacitance |
Ci = 8 nF |
| Maximum Internal Inductance |
Li = 0 mH |
| ATEX Certificate Number |
CML 14ATEX2079 |
| IECEx Certificate Number |
IECEx CML 14.0032 |
| JapanEx Certificate Number |
CML 23JPN2141 |
| UKCA Certificate Number |
CML 21UKEX2001 |
General Specifications:
| Specification |
Value |
| Temperature Range |
Configurable from -20°C to 1000°C via optional USB adapter; pre-set to a choice of ranges between
these limits (see Ordering) |
| Maximum Temperature Span |
1000°C |
| Minimum Temperature Span |
100°C |
| Output |
4 to 20 mA |
| Optional USB configuration tool and RS-485 network interface available |
| Accuracy |
± 1°C or 1%, whichever is greater |
| Repeatability |
± 0.5°C or 0.5%, whichever is greater |
| Emissivity Setting Range |
0.20 to 1.00 (pre-set to 0.95) |
| Emissivity Setting Method |
User configurable via optional modules |
| Response Time, t90 |
240 ms (90% response) |
| Spectral Range |
8 to 14 μm |
| Supply Voltage |
12 to 24 V DC ± 5% |
| Maximum Current Draw |
25 mA |
| Maximum Loop Impedance |
See Application Guide (available separately) |
Mechanical Specifications:
| Specification |
Value |
| Construction |
Stainless Steel 316 |
| Major Dimensions |
Ø 20 mm x length 150 mm (see Installation) |
| Mounting |
M20 x 1.5 mm thread, length 46 mm, supplied with two mounting nuts |
| Cable Length |
5 m, 10 m, or 25 m as standard (custom lengths are also available) |
| Weight with 5 m Cable |
475 g |
Electromagnetic Compatibility Standards:
| Specification |
Value |
| Environmental Rating |
IP65 (NEMA 4) |
| Ambient Temperature Range |
0°C to 70°C (Operating range) |
| Ambient Pressure Range |
80 kPa (0.8 bar) to 110 kPa (1.1 bar) |
| Relative Humidity |
Max. 95% non-condensing |
| CE Marked |
Yes |
| RoHS Compliant |
Yes |

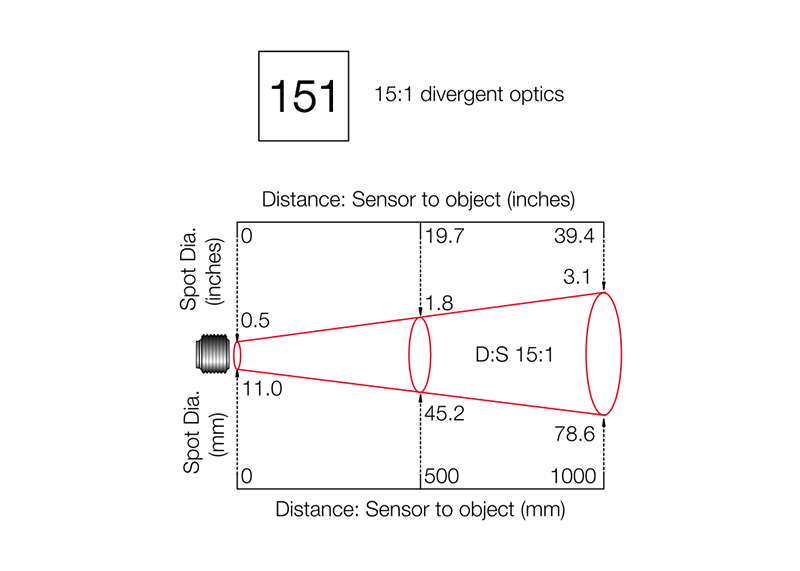

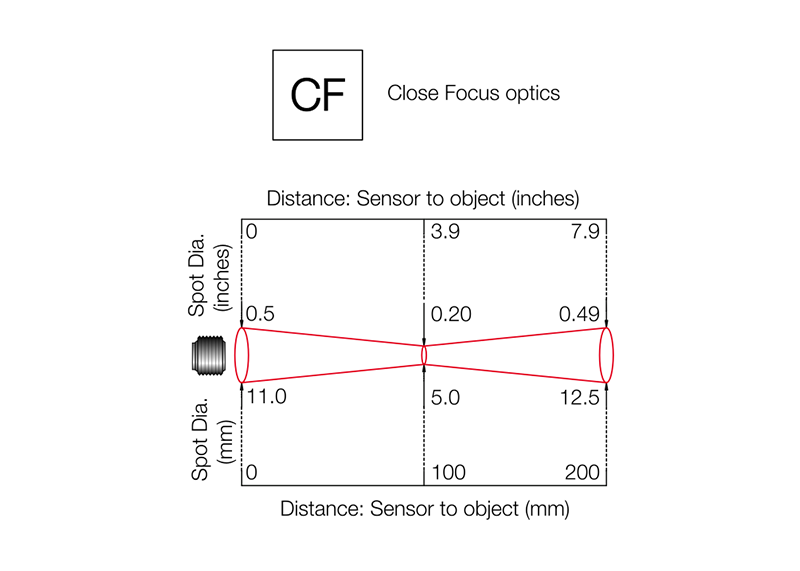

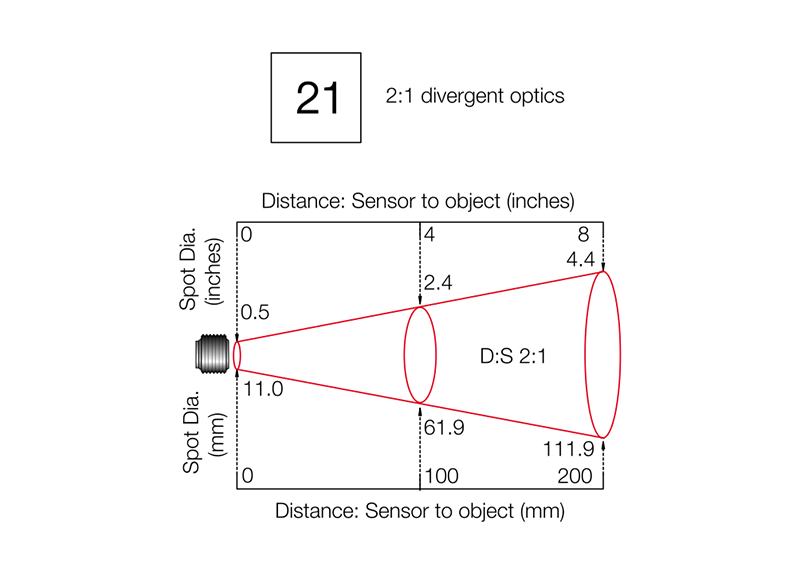

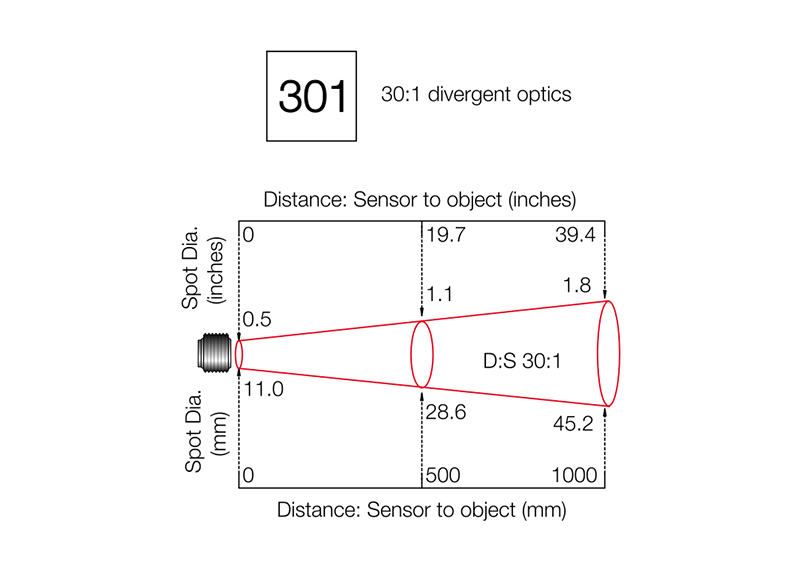

Field of View Diagrams:
Note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the
target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer
distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the
ExTemp detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
