Proxima Control Unit CU

    Categories Control, Building Controllers

    Produal Proxima® CU is a multifunctional control unit designed especially for room and zone control applications. The control unit supports the following communication protocols: Modbus RTU, Modbus TCP, BACnet MS/TP and BACnet IP. Two rooms can be controlled with one control unit by connecting two room units. Configuration of the Produal Proxima® CU is done with Produal MyTool® Android application. Up to two Produal Proxima® room units can be connected at the same time to the controller, to support up to two rooms from the same controller.

    Brand : Produal

    • Description
    • Attachment

    Technical Data

    Communication Modbus RTU / BACnet MS/TP / Modbus TCP / BACnet IP
    Power Supply 24 Vac/dc (22...26 V), < 7 VA
    Multifunctional Output 4 x 0...10 Vdc, 2 mA / 24 Vac, 1 A (PWM) and 2 x 0...10 Vdc, 2 mA / 0…20 mA, 700 Ω
    Supply Output 2 x 24 Vac, total load < 8 A
    Multifunctional Input 6 x NTC 10 / Pt1000 / Resistive / Digital / 0...10 Vdc
    IP Protection Class IP22
    Ambient Temperature 0...50 °C
    Ambient Humidity 0...85 %rH

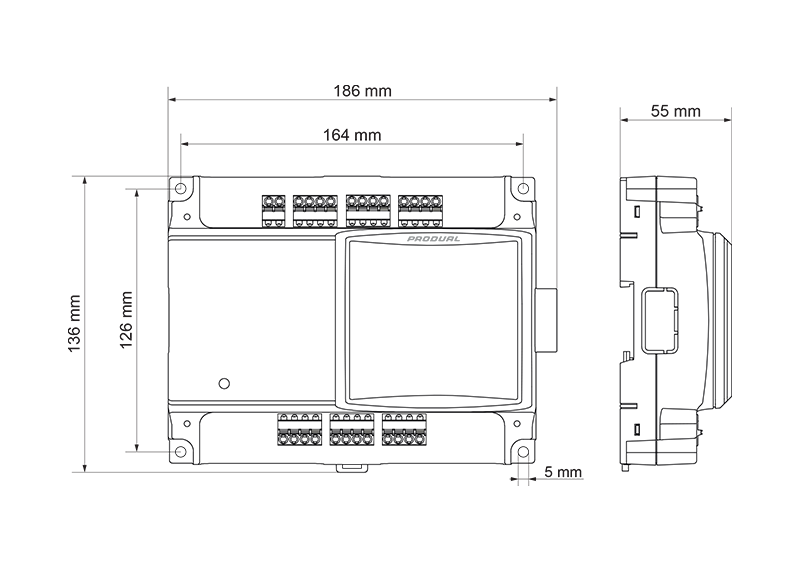

    Product Dimensions 186 x 136 x 55 mm
    Mounting on the wall surface or on 35 mm DIN rail
    Materials PC plastic
