Categories IAQ Sensors, Indoor Air Quality Transmitter
ILK transmitters are designed for measuring and controlling VOC (Volatile Organic Compound) level, temperature and humidity inside ventilation ducts. MEMS sensing technology ensures accurate and durable VOC measurement that is related to the CO₂ level. With the VOC level information the demand based ventilation can be controlled effectively.
Brand : Produal
| Additional Measurements | No additional measurements |
| Power Supply | 24 Vac/dc, < 2 VA |
| VOC Measurement Range | 450...2000 ppm (CO₂ equivalent) |
| Temperature Measurement Range | 0...50 °C |
| Temperature Measurement Accuracy | ±0.5 °C |
| Temperature Output | 0...10 Vdc, 2 mA |
| Relay Output | None |
| IP Protection Class | IP54 |
| IP Protection Class Note | cable downwards |
| Cable Gland | M16 |
| Ambient Temperature | 0...50 °C |
| Ambient Humidity | 0...85 %rH |

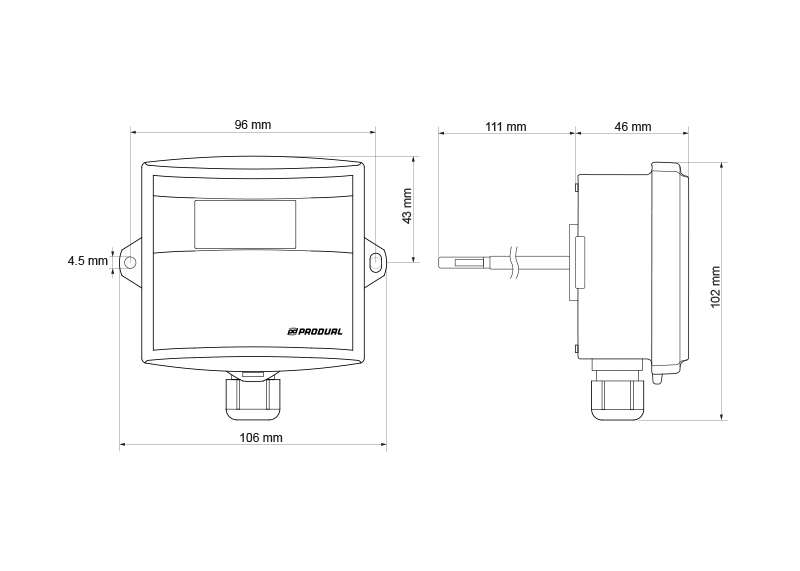

| Product Dimensions | 105 x 104 x 155 mm |
| Mounting | in a Ø 10 mm hole, with screws, external lugs |
| Materials | PC plastic |
