CarboProbe HT - Industries

      Categories Liquid & Gas Analysis, Oxygen Probe Econox %C

      Based on the ZrO2 C3M Electrolyte, the CarboProbe HT probe can handle temperatures up to 1700°C. All parts exposed to high temperatures are ceramic or platinum. This probe has a robust construction with a 15 mm diameter ceramic tube that protects the internal measurement device. This probe measures the oxygen concentration.

      MAINTENANCE

      There are no maintenance parts required inside the sensor, if the platinum external connector is damaged it can be repaired without loss of signal quality.

      Works great with our ControX display and control module

      Get Quote
      • Description
      • Attachment

      Technical Information

      TECHNICAL CHARACTERISTICS
      Output 0 to 1200 mv
      Readout impedance This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher
      Accuracy +- 2 mV in normal operating range
      Response time Less than 1 second
      Thermocouple R, S
      Operating temperature From 600°C (1100°F) to 1700°C (3100°F)
      Mechanical shock Resists mild mechanical shock. Handle carefully

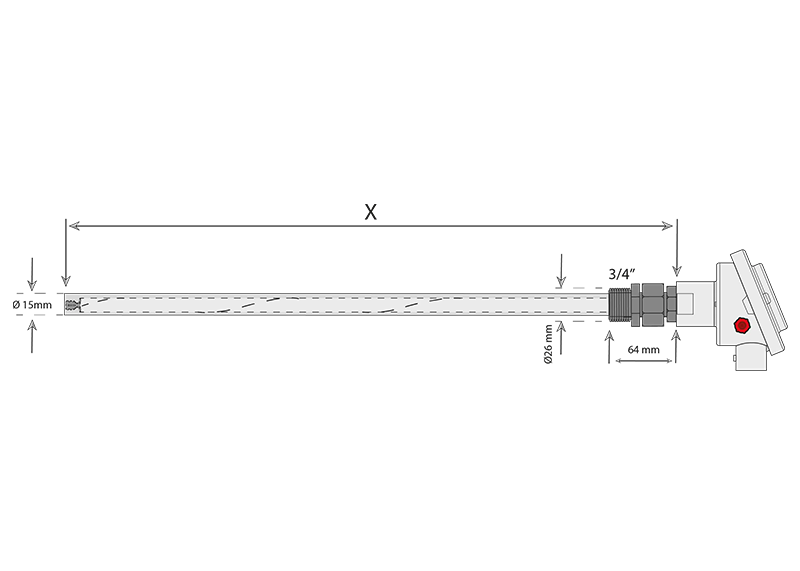

      Available lengths 300mm (11.8”), 400mm (15.7”), 500mm (19.7”), 600mm (23.6”), 700mm (27.5”), 800mm (31.5”), 900mm (35.4”), 1000mm (39.4), 1100mm (43.3”)
      Reference air Uncontaminated dry air at maximum rate of 1-6 l/h
      External diameter 15 mm
