CarboProbe ZI pro for heat treatment (%C)

CarboProbe ZI pro for heat treatment (%C)

Categories Liquid & Gas Analysis, Carbon Probe Econox %O2

The CarboProbe ZI pro, based on a ZrO2 ball for the measuring element, allows a very precise value of carbon concentration (and oxygen concentration) in an industrial furnace to be obtained. Due to its simple design, it is easily repairable. This solution, which has been shown to be very reliable and robust, has not ceased to evolve. The outer electrode of this probe has gone through a special surface treatment that reduces the corrosion and metal dusting significantly.

The advantage of the interchangeable measurement element resides in its robustness and ease of replacement.

Thermal shock resistant (can be placed or removed from furnace quickly)

This probe measures the oxygen concentration and the carbon potential.

Get Quote

Description
Attachment

Technical Information

TECHNICAL CHARACTERISTICS
Output	0 to 1200 mv
Readout impedance	This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher
Response time	Less than 1 second
Thermocouple	Type K, S, N or without
Operating temperature	From 600°C (1100°F) to 1150°C (2100°F)
Mechanical shock	Resists mild mechanical shock. Handle carefully

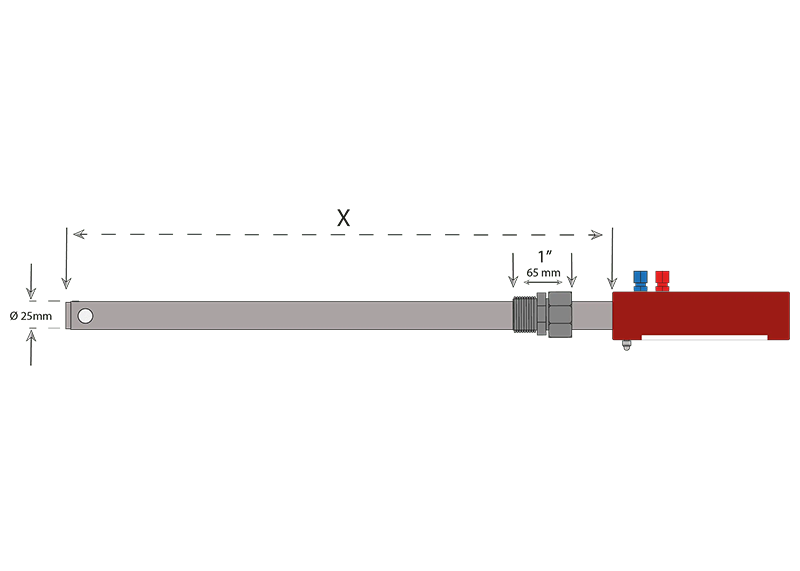

Available lengths	500mm (19.7”), 650mm (25.6”), 750mm (29.5”), 850mm (33.5”), 1000mm (39.4), 1200mm (47.2”)
Reference air	Uncontaminated dry air at maximum rate of 20-30 l/h
Cleaning air	Uncontaminated dry air at maximum rate of 300 l/h
External diameter	25 or 35 mm (with protective ceramic tube)

Carboprobe ZI Pro Key Features

Thermal shock resistant (can be placed or removed from furnace quickly)
Outer electrode has gone through a special surface treatment that reduces corrosion and metal dusting significantly
Interchangeable ZrO2 ball used as a measuring element
Can also be supplied with an outer protective ceramic
Ideal for use in carburizing, carbonitriding, neutral hardening and gas generator applications
Every probe is 100% tested with certification, certificates are enclosed with each probe
Response time < 1.0 second
High reliability of the probe thanks to a simple and effective concept
Interchangeable with all oxygen probes or carbon sensors

CarboProbe ZI Pro
