Categories Liquid & Gas Analysis, Carbon Probe Econox %O2
The CarboProbeZS Pro probe was developed for very difficult working conditions. It is based on the ZrO2 C3M electrolyte. This probe measures the oxygen concentration and offers excellent accuracy for the measurement of carbon potential (%C) and temperature (°C).
Patented design for more security in your worshop!
| TECHNICAL CHARACTERISTICS | |
| Output | 0 to 1200 mv |
| Readout impedance | This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher |
| Response time | Less than 1 second |
| Thermocouple | Type K, S or without |
| Operating temperature | From 600°C (1100°F) to 1150°C (2100°F) |
| Mechanical shock | Resists mild mechanical shock. Handle carefully |
| Available lengths | 500mm (19.7”), 650mm (25.6”), 750mm (29.5”), 850mm (33.5”), 1000mm (39.4), 1200mm (47.2”), 1300mm (51.2”) |
| Reference air | Uncontaminated dry air at maximum rate of 1-6 l/h |
| Cleaning air | Uncontaminated dry air at maximum rate of 300 l/h |

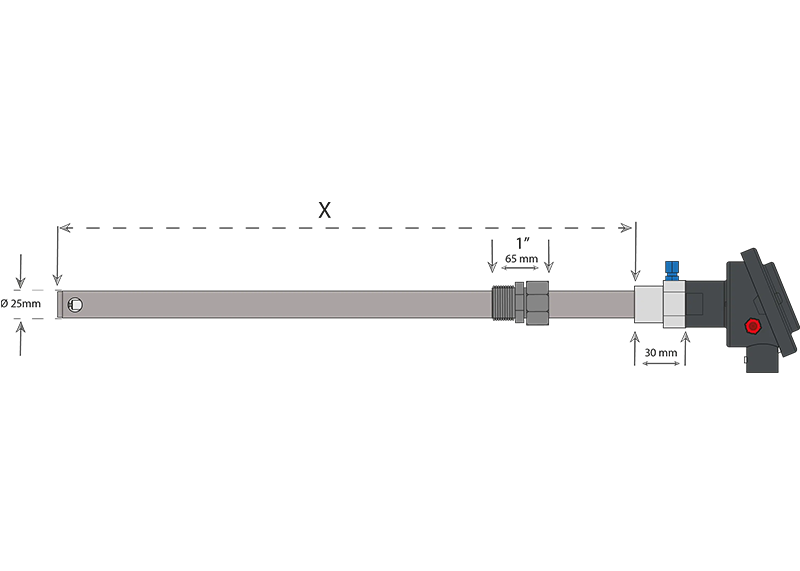

| External diameter | 25 mm |
