The CarboPorbe IP-E was developed for very difficult working conditions. It is based on a gas-tight measuring cell totally made of ZrO2 This probe measures the oxygen concentration and offers excellent accuracy for the measurement of carbon potential (%C) and temperature (°C).
Patented design for more security in your worshop!
| TECHNICAL CHARACTERISTICS | |
| Output | 0 to 1200 mV |
| Readout impedance | This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher |
| Response time | Less than 1 second |
| Thermocouple | Types K, S, N or without |
| Operating temperature | De 600°C (1100°F) à 1150°C (2100°F) |
| Mechanical shock | Resists mild mechanical shock. Handle carefully |

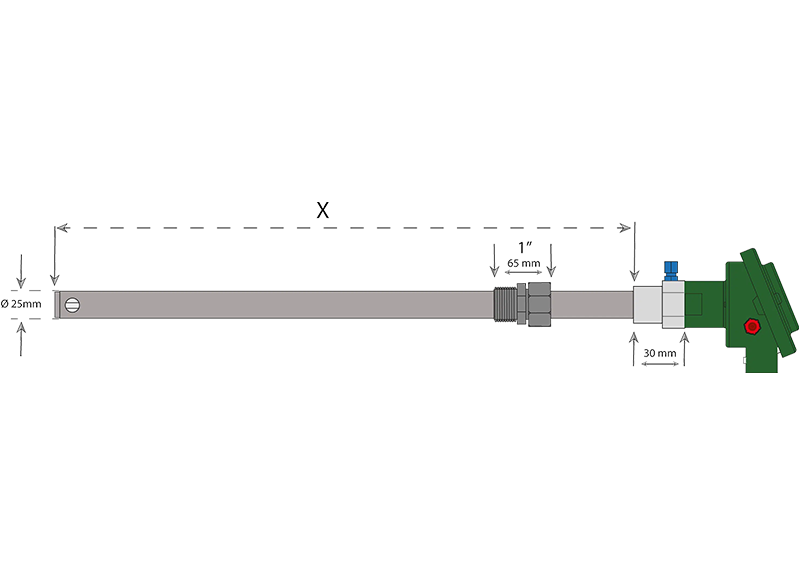

| Available lengths | 500mm (19.7”), 650mm (25.6”), 750mm (29.5”), 850mm (33.5”), 1000mm (39.4); |
| Reference air | Uncontaminated dry air at maximum rate of 1-6 l/h |
| Cleaning air | Uncontaminated dry air at maximum rate of 300 l/h |
| External diameter | 25 mm |
