Categories Temperature, Temperature Transmitters
TEK temperature sensors are designed for automatic ventilating systems to measure duct temperature. Sensors are mounted to the duct by means of an adjustable duct connection flange for optimal temperature measurement. Transmitter’s settings can be changed by using the ML-SER tool.
Brand : Produal
| Attribute | Value |
|---|---|
| Power supply | 15…35 Vdc |
| Temperature measurement range | 0…50 °C, 0…100 °C, -50…50 °C, -50…150 °C |
| Temperature measurement accuracy | ±0.5 °C |

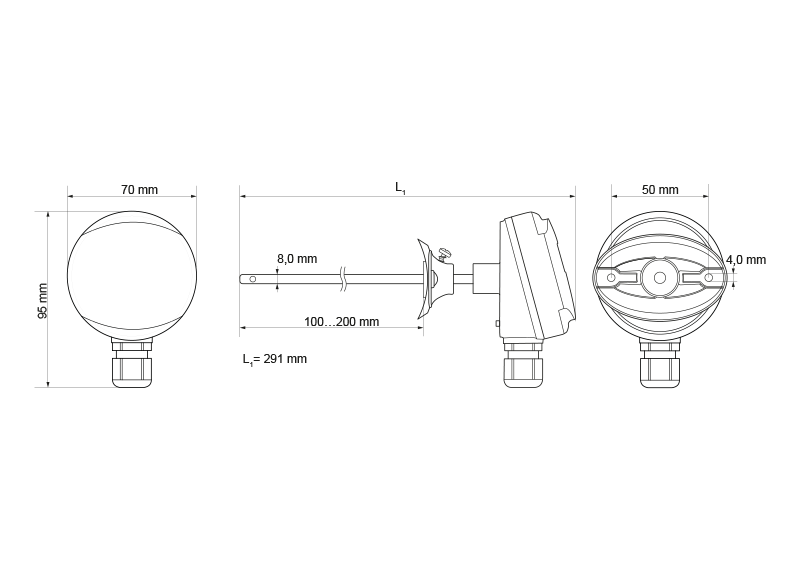

| Probe | Ø 8 x 200 mm |
| Probe length | 200 mm |
| Sensor | Pt1000 EN 60751/B |
| IP protection class | IP54 |
| IP protection class note | Cable or probe downwards |
| Cable gland | M16 |
| Mounting | With flange |
| Materials | PBT, PC, PA, stainless steel |
