TEAT temperature transmitters are especially designed for measuring the temperature of heating water. Transmitters are installed in a pocket. Transmitter’s settings can be changed by using the ML-SER tool.
Brand : Produal
| Attribute | Value |
|---|---|
| Power supply | 15…35 Vdc |
| Temperature measurement range | 0…50 °C, 0…100 °C, -50…50 °C, -50…150 °C |
| Temperature measurement accuracy | ±0.5 °C |

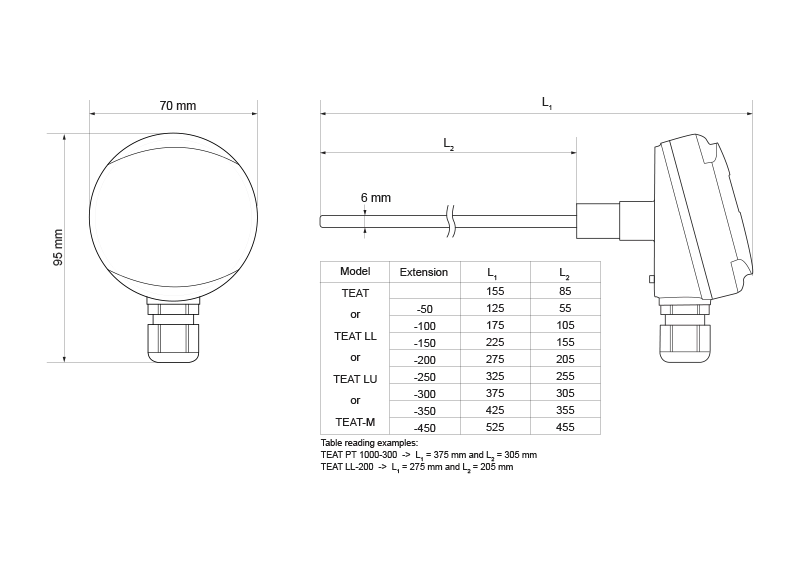

| Probe | Ø 6 x 85 mm |
| Probe length | 80 mm |
| Sensor | Pt1000 EN 60751/B |
| Current output | 4…20 mA (temperature or controller) |
| IP protection class | IP54 |
| IP protection class note | Cable or probe downwards |
| Cable gland | M16 |
| Ambient temperature | 0…60 °C |
| Mounting | Water applications: with Produal pocket (R½”), Air applications: with MT4270 flange |
| Materials | PBT, PC, PA, acid-proof steel |
