HLS 44-CO2 is a versatile room controller for individual room temperature and VAV control applications. Controller has a built-in CO₂ sensor. The controller can be connected to any system that supports Modbus RTU protocol by using the RS-485 connection. The bus is galvanically isolated from the controller's other electronics. Controller supports 0...10 V controlled actuators and thermal (PWM) actuators.
Brand : Produal
| Communication | Modbus RTU |
| Power Supply | 24 Vac/dc, < 1 VA |
| Set Point | 18...26 °C, ±16 °C (day mode), 8...50 °C (night mode) |
| CO₂ Measurement Range | 0...2000 ppm |
| CO₂ Measurement Accuracy | typ. ±40 ppm +3 % of value |
| Temperature Measurement Range | 0...50 °C |
| Temperature Measurement Accuracy | ±0.5 °C |
| Triac Output | 2 x 24 Vac, 1 A |
| Voltage Input | 1 x 0...10 Vdc |
| Digital Input | 1 x potential free input |
| Resistive Input | 1 x NTC 10 / DI |
| Voltage Output | 4 x 0...10 Vdc, 2 mA |
| IP Protection Class | IP20 |
| Ambient Temperature | 0...50 °C |
| Ambient Humidity | 0...85 %rH |

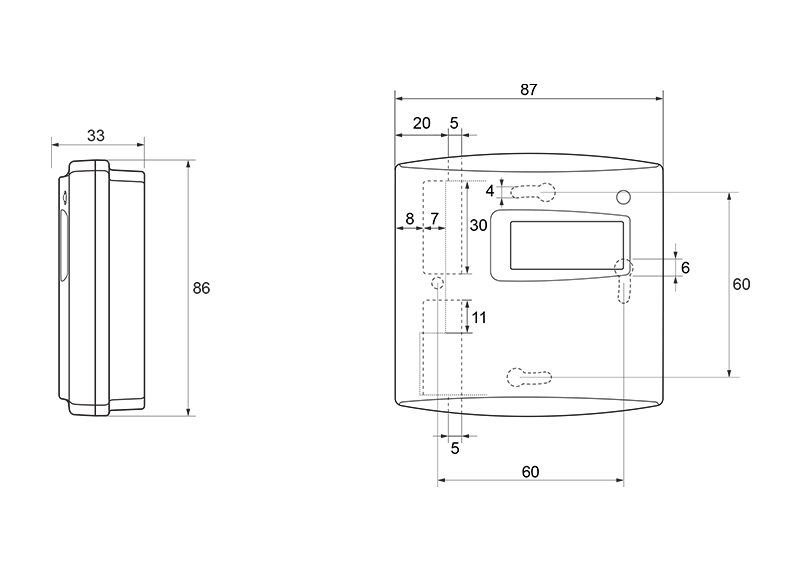

| Product Dimensions | 87 x 86 x 32 mm |
| Mounting | with screws on wall or on a junction box (hole distance 60 mm) |
| Materials | ABS plastic |
