PyroMiniBus – Miniature Pyrometer with RS-485 Modbus for Multi-Channel Systems

PyroMiniBus – Miniature Pyrometer with RS-485 Modbus for Multi-Channel Systems


– Measure surface temperature from -20 to 1000°C on a variety of target materials, including painted surfaces, paper, plastics, asphalt, food, organic materials, rubber and many more.

– Touch screen terminal for configuration, display, alarms and data logging

– The PyroMiniBus is ideal as a low-cost, standalone 6-channel system, or it can be connected to a larger system using the PM180’s separate Modbus Master and Slave interfaces.

– Connect the PM180 touch screen terminal to another network as a slave device, using its secondary Modbus interface

– Analogue and alarm relay outputs via optional modules

– Conforms to industrial EMC standards

– Robust miniature sensors withstand 120°C ambient temperature without cooling

– Junction box for easy wiring (optional)


General Specifications:

Compatibility– PyroMiniBus (all models)
– PyroBus (all models)
– PyroMini (-BB and -BRT models)
Display2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
Supply Voltage10 to 30 V DC
Maximum Current Draw100 mA
Ambient Temperature Range0°C to 60°C
Relative HumidityMaximum 95%, non-condensing
Configurable Parameters (global)– Temperature units
– Date and time
– Data logging
– Graph channels
– Alarm logging
Configurable Parameters (per sensor)– Signal processing
– Emissivity setting
– Reflected energy compensation
– Alarms
– Modbus address
Alarm Configuration12 alarms (2 per sensor) with adjustable level, individually configurable as HI or LO
Temperature Units°C or °F selectable
Temperature Resolution0.1°
Signal Processing– Average
– Peak hold
– Valley hold
– Minimum
– Maximum
Display Sample Period120 ms per sensor (720 ms in total for 6 sensors)

Data Logging Specifications:

Logging Interval1 to 86,400 seconds (1 day)
MicroSD CardMax. capacity: 32 GB (not included)
Internal Clock Battery1 x BR 1225 3V (not included)
Variables Logged– Target temperature
– Sensing head temperature
– Alarm events
File Format.csv (can be imported to Excel)
Configurable Parameters– Sample period
– Number of samples
– Scheduled start date and time

Mechanical Specifications:

Dimensions98(w) x 64(h) x 36(d) mm excluding cable glands
Weight280 g

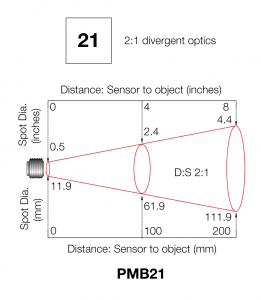

Field of View Diagrams

Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer distances than the above diagrams show. There is no maximum measurement distance in clean air; this is because the PyroMiniBus detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.
